DPC-10-120

Overview

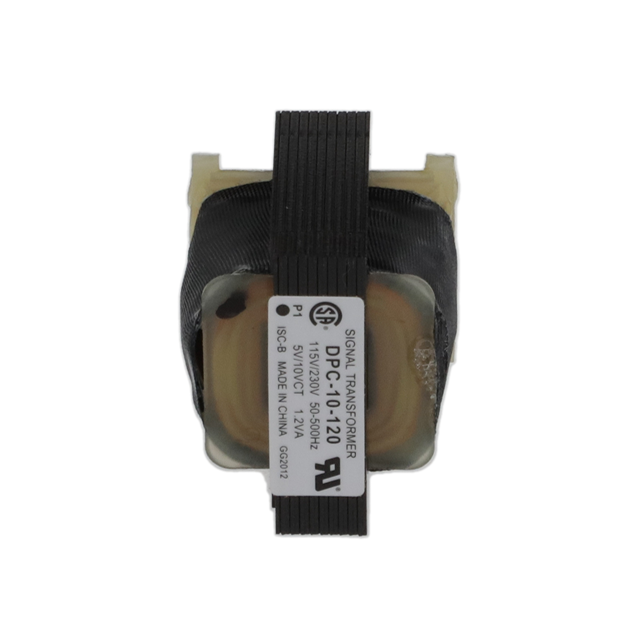

The DPC-10-120 is a laminated core power transformer from the PC series by Signal Transformer, designed for through-hole mounting. It features dual primary windings rated for 115 VAC and 230 VAC operation at 50 Hz to 500 Hz. The secondary configuration provides parallel 5V at 240 mA and series 10V at 120 mA. With a 1.2 VA power rating, it measures 34.9 mm in length, 28.6 mm in width, and 30.15 mm in height.

Feature Summary

• Dual primary winding capability for versatile input voltage selection
• Compact laminated core construction suitable for board-mounted applications
• Flexible secondary output options with parallel and series configurations

Applications

• Low-power electronic circuit isolation
• Signal conditioning interfaces
• Control panel auxiliary power supplies

Procurement Notes

Verify datasheet specifications against current manufacturing revisions. Confirm RoHS compliance status and lead times directly with authorized distributors. Ensure mechanical dimensions match PCB footprint requirements before finalizing procurement orders.

Selection Notes

Select this component for applications requiring low power isolation with flexible secondary outputs. Consider the 1.2 VA rating and physical size constraints. Verify frequency range compatibility with the target operating environment.

Part Context

This part belongs to the PC/DPC series of miniature low-power transformers. These components are characterized by their small form factor and through-hole termination style, intended for space-constrained designs requiring reliable electrical isolation.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify equivalent electrical parameters and mechanical dimensions when evaluating alternative suppliers or updated part numbers.
