DPC-40-600

Overview

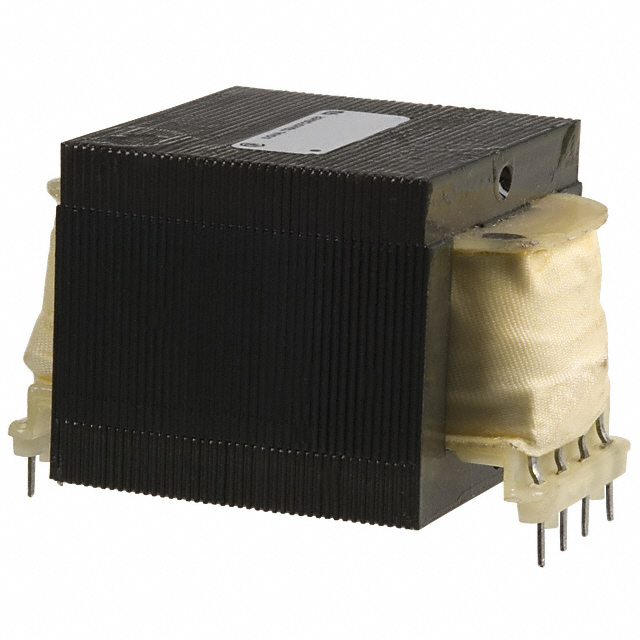

The Signal Transformer DPC-40-600 is a laminated core power transformer designed for 50/60 Hz applications. It features dual primary and dual secondary windings to support versatile voltage configurations. The unit operates with a 24VA rating and accepts 115V or 230V primary inputs in parallel. Secondary outputs provide 20V at 1.2A in parallel or 40V at 600mA in series. This through-hole component ensures reliable performance for standard electrical requirements.

Feature Summary

• Versatile dual primary and dual secondary winding architecture
• Laminated core construction for stable operation
• Supports multiple voltage input and output configurations

Applications

• General purpose power supply circuits
• Industrial control equipment
• Electronic devices requiring isolated AC voltage conversion

Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm exact packaging and pinout compatibility. Ensure the selected variant matches the required mounting style and thermal characteristics for the target enclosure. Cross-reference datasheet specifications with system design constraints before finalizing procurement orders.

Selection Notes

Select this component when dual voltage flexibility is required for both input and output stages. The through-hole mounting style suits prototyping and high-reliability industrial assemblies. Consider the 24VA power limit and operating frequency range of 50 Hz to 500 Hz during circuit design to ensure adequate headroom and thermal management.

Part Context

This model belongs to the PC series of power transformers from Signal Transformer. It utilizes a laminated core design typical for general-purpose isolation applications. The part number indicates specific winding ratios and power ratings within the manufacturer's standardized product line for commercial and industrial electronics.

Replacement Considerations

Consult official substitution lists for direct equivalents. Verify that any alternative part maintains identical pin assignments, physical dimensions, and electrical ratings to ensure board compatibility without redesign.

FAQ

What are the available secondary voltage configurations?

The secondary windings can be configured in parallel for 20V at 1.2A or in series for 40V at 600mA.

Is this transformer suitable for frequencies other than 50/60 Hz?

Yes, the component supports an operating frequency range from 50 Hz to 500 Hz.
