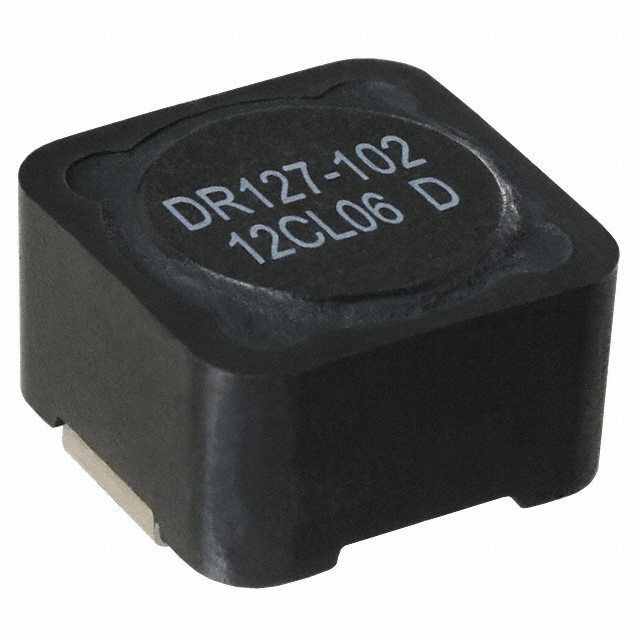

DR127-102 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is FIXED IND 1MH 610MA 1.66 OHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for DR127-102
- Description：FIXED IND 1MH 610MA 1.66 OHM SMD
- Series：DR
- Mfr：Eaton - Electronics Division
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：1 mH
- Tolerance：±20%
- Current Rating (Amps)：610 mA
- Current - Saturation (Isat)：1.14A
- Shielding：Shielded
- DC Resistance (DCR)：1.66Ohm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height - Seated (Max)：0.315" (8.00mm)
- Features：-
Fixed Inductors datasheet and documents for DR127-102
Fixed Inductors Overview
The Eaton DR127-102 is a shielded drum core wirewound power inductor designed for surface mount applications. It features an inductance of 1 mH with a tolerance of ±20%. The component has a maximum DC current rating of 610 mA and a saturation current of 1.14 A. Its maximum DC resistance is 1.66 Ohms, tested at 100 kHz. The physical dimensions are 12.5 mm in length, 12.5 mm in width, and 8.00 mm in height. It operates within a temperature range of -40°C to +125°C.
Fixed Inductors Feature Summary
- Magnetic shielding design minimizes electromagnetic interference
- Drum core wirewound construction for stable performance
- Surface mount package facilitates automated assembly
Fixed Inductors Applications
- DC-DC converter output filtering
- Power supply input filtering
- General purpose signal processing circuits
Fixed Inductors Procurement Notes
Verify the specific suffix against the manufacturer datasheet to confirm exact electrical tolerances and packaging configurations. Ensure the ordering part number matches the required inductance value and current ratings for the target circuit design. Confirm RoHS compliance status if environmental regulations apply to the final product assembly.
Fixed Inductors Selection Notes
Select this component when a compact shielded inductor is required for moderate current applications. The 12.5 mm square footprint allows for dense PCB layouts. Consider the saturation current limit relative to peak load conditions to prevent performance degradation during transient states.
Fixed Inductors Part Context
This part belongs to the DR series of high-power shielded drum core inductors from Eaton Electronics. The series offers various inductance values optimized for different power levels while maintaining a consistent mechanical profile for standardized board designs.
Fixed Inductors Replacement Considerations
Cross-reference with other shielded SMD inductors sharing identical 12.5x12.5x8mm dimensions and 1mH inductance. Verify that substitute parts meet or exceed the 1.14A saturation current and 1.66 Ohm DCR specifications.
