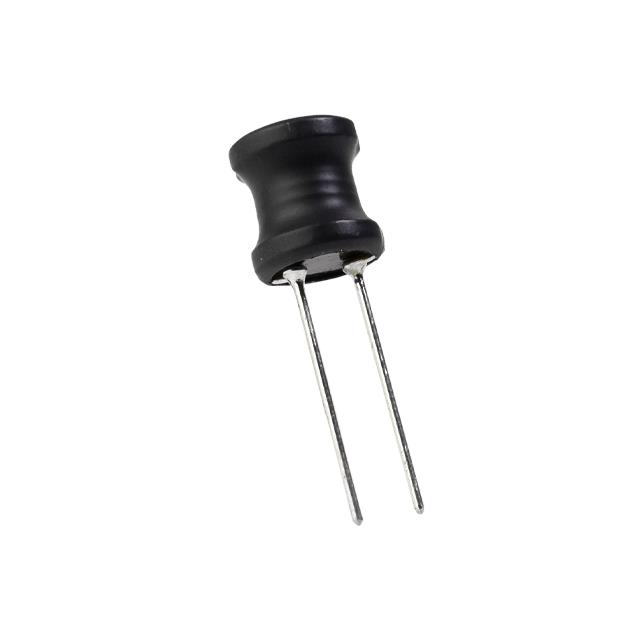

Fixed Inductors DRC-1010-101J-UL product image

DRC-1010-101J-UL

$1.21

Description：RADIAL INDUCTOR WITH LEADS, 100.
Series：DRC-1010
Mfr：Signal Transformer
Package：Bag

SKU:30ddf6cbf058 Category: Fixed Inductors Brand: Signal Transformer

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DRC-1010-101J-UL is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is RADIAL INDUCTOR WITH LEADS, 100.. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for DRC-1010-101J-UL

Description：RADIAL INDUCTOR WITH LEADS, 100.
Series：DRC-1010
Mfr：Signal Transformer
Package：Bag
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：100 µH
Tolerance：±5%
Current Rating (Amps)：1.4 A
Current - Saturation (Isat)：1.6A
Shielding：Unshielded
DC Resistance (DCR)：160mOhm Max
Q @ Freq：20 @ 796kHz
Frequency - Self Resonant：3.8MHz
Ratings：-
Operating Temperature：-20°C ~ 85°C
Inductance Frequency - Test：1 kHz
Mounting Type：Through Hole
Package / Case：Radial, Vertical Cylinder
Supplier Device Package：Radial, Vertical Cylinder
Size / Dimension：0.472" Dia (12.00mm)
Height - Seated (Max)：0.512" (13.00mm)
Features：-

Fixed Inductors datasheet and documents for DRC-1010-101J-UL

DRC-1010-101J-UL
