DRV201YFMT

Overview

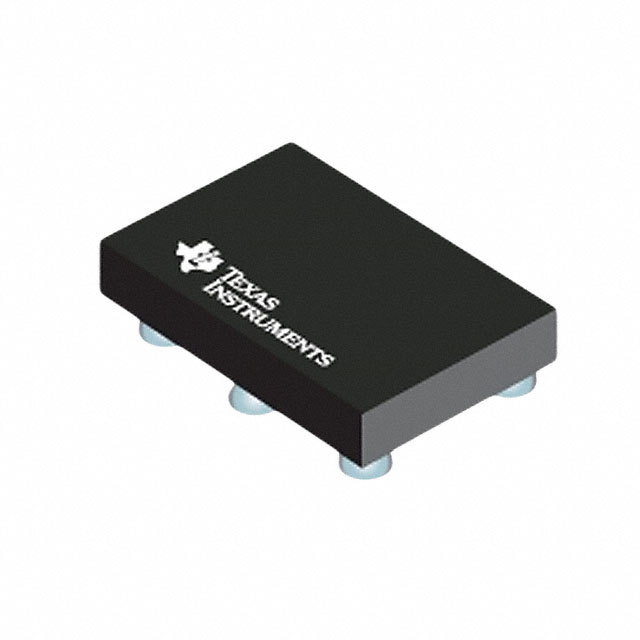

The DRV201YFMT is a voice coil motor lens driver manufactured by Texas Instruments, designed for camera autofocus applications. It operates within a supply voltage range of 2.5V to 4.8V and delivers an output current of 100mA. The device features a low static current of 120µA and includes ringing compensation functionality. It is housed in a compact 6-pin XFLGA package with dimensions of 2x3mm. The component supports an operating temperature range from -40°C to 85°C.

Feature Summary

• Integrated ringing compensation circuitry for precise lens control
• Low power consumption suitable for portable devices
• Compact surface-mount packaging for space-constrained designs

Applications

• Camera autofocus systems
• Mobile phone cameras
• Webcams
• Digital still cameras

Procurement Notes

Verify the specific suffix YFMT against official Texas Instruments documentation to confirm the exact package type and tape/reel specifications. Ensure compatibility with your PCB footprint design, as the XFLGA-6 package requires precise soldering parameters. Confirm that the operating temperature range meets your environmental requirements before finalizing procurement decisions.

Selection Notes

Select this component when designing camera modules requiring integrated voice coil motor driving with minimal external components. Consider the 100mA drive capability and low quiescent current for battery-operated devices. Evaluate the thermal performance within the specified -40°C to 85°C range to ensure reliable operation under varying environmental conditions.

Part Context

This part belongs to the DRV201 series of voice coil motor drivers from Texas Instruments. These components are specialized for optical zoom and autofocus mechanisms in imaging systems. The series focuses on providing efficient motor control with reduced system complexity through integrated power stages and control logic.
