DRV3233EPHPRQ1

Overview

The DRV3233EPHPRQ1 is an automotive-grade three-phase gate driver designed for 12 V and 24 V battery systems. It integrates three half-bridge drivers capable of driving high-side and low-side N-channel power MOSFETs. The device features a wide operating voltage range from 4.5 V to 60 V and supports 100% PWM duty cycle control via a trickle charge pump. It includes configurable peak gate drive currents, low-offset current sense amplifiers, and comprehensive diagnostic protection functions.

Feature Summary

• Integrates three half-bridge gate drivers with configurable peak gate drive currents up to 1 A source and 2 A sink
• Features low-offset low-side current sense amplifiers for precise motor current measurement
• Supports 100% PWM duty cycle control and external switch overdrive supply voltage
• Includes advanced protection and diagnostic functions such as battery monitoring and fault indication

Applications

• Electric power steering and steer-by-wire systems
• Electronic mechanical braking and brake-by-wire applications
• Transmission and shift-by-wire mechanisms
• Automotive pump control systems

Procurement Notes

Verify the specific suffix EPHP against official Texas Instruments documentation to confirm the extended temperature rating of -40°C to +150°C. Ensure compatibility with ISO 26262 functional safety requirements by consulting the relevant auxiliary design documents provided by the manufacturer. Confirm package integrity and moisture sensitivity levels prior to assembly.

Selection Notes

Select this component for applications requiring precise current sensing and robust gate driving in harsh automotive environments. The extended temperature range makes it suitable for under-hood or high-heat zones. Evaluate the need for SPI-based configuration versus standard PWM interfaces based on system complexity and diagnostic requirements.

Part Context

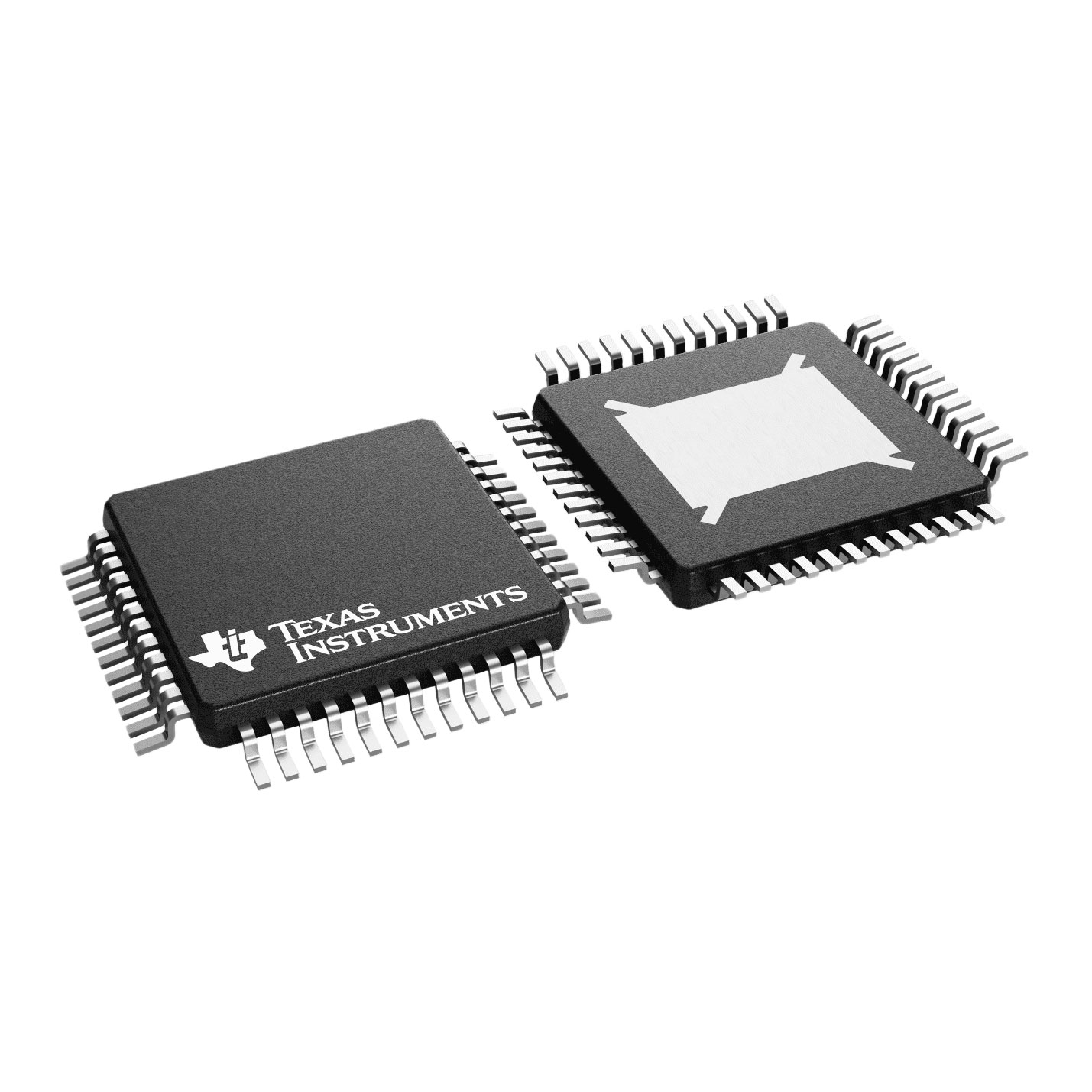

This part belongs to the DRV3233-Q1 family of intelligent gate drivers. It is specifically engineered for three-phase BLDC motor applications in vehicles. The device simplifies system design by integrating bootstrap diodes, charge pumps, and current sense amplifiers into a single HTQFP-48 package, reducing external component count.

Replacement Considerations

Consult official substitution lists for variants within the DRV3233 series. Verify pinout and thermal characteristics when considering alternatives. No direct public substitute part numbers are confirmed in the provided data.
