Product Detailed Parameters
- Description：IC MTR DRVR BIPOLAR 8-38V 16QFN
- Series：-
- Mfr：Texas Instruments
- Package：Tape & Reel (TR),Cut Tape (CT)
- Motor Type - Stepper：Bipolar
- Motor Type - AC, DC：Brushed DC
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (2)
- Interface：Parallel
- Technology：DMOS
- Step Resolution：-
- Applications：General Purpose
- Current - Output：2.8A
- Voltage - Supply：8V ~ 38V
- Voltage - Load：8V ~ 38V
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Surface Mount

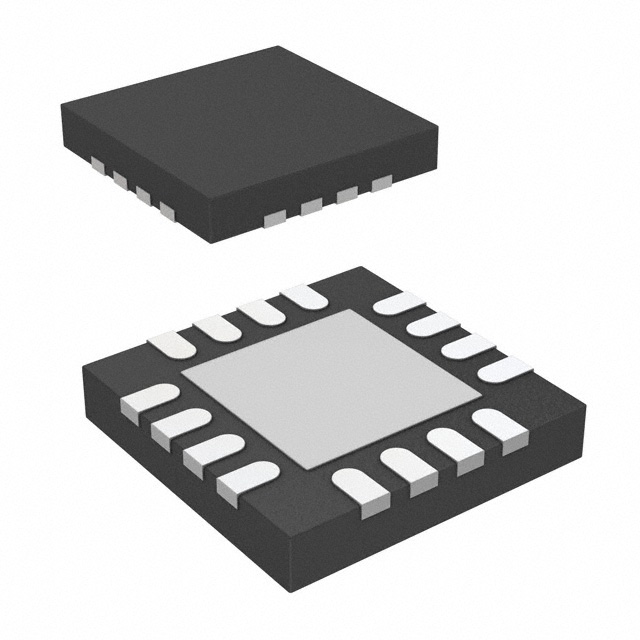

- Package / Case：16-WQFN Exposed Pad
- Supplier Device Package：16-QFN (4x4)
- Grade：-
- Qualification：-
Download product information
Overview
The DRV8800RTYT is a full-bridge motor driver manufactured by Texas Instruments, designed for brushed DC motor applications. It operates within a supply voltage range of 8 V to 36 V and delivers an output current of 2.8 A. The device features a low operating supply current of 6 mA and functions across a temperature range of -40°C to +85°C. It utilizes a WQFN-16 surface-mount package and includes one output channel. The component is classified under Motor / Motion / Ignition Controllers & Drivers and supports SMD/SMT installation styles.
Feature Summary
- Integrates a full-bridge topology for bidirectional control of brushed DC motors
- Provides integrated protection mechanisms against overcurrent and thermal conditions
- Supports direct interface with microcontrollers via simple logic inputs
Applications
- Brushed DC motor control in home appliances
- Automotive actuator systems
- Industrial automation equipment
Procurement Notes
Verify the specific suffix RTYT to confirm the tape-and-reel packaging configuration and quantity per reel. Ensure compatibility with WQFN-16 footprint requirements during PCB layout. Confirm moisture sensitivity level handling procedures are followed according to manufacturer guidelines for lead-free devices. Cross-reference the datasheet revision date to ensure alignment with current design specifications.
Selection Notes
Select this component when a single full-bridge driver with 2.8 A continuous current capability is required. It is suitable for designs needing operation up to 36 V supply voltage. Consider the WQFN-16 package size constraints and thermal dissipation needs. Compare against similar DRV8800 variants if different packaging options like PWPR are preferred for assembly processes.
Part Context
This part belongs to the DRV8800 series of brushed DC motor drivers from Texas Instruments. It shares core electrical characteristics with other members of the family, such as the DRV8800R and DRV8800RTYR, differing primarily in packaging and reel specifications. The series is positioned for cost-effective motor control solutions in consumer and industrial markets.
Replacement Considerations
The DRV8800RTYR serves as a functional equivalent with identical electrical specifications but may differ in reel packaging quantity. Verify pinout compatibility and thermal performance before substitution.
