DS1-175-0005 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 3A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DS1-175-0005
- Description：CMC 3A 2LN TH
- Series：DS
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：26mOhm
- Voltage Rating - DC：600V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.689" L x 0.630" W (17.50mm x 16.00mm)
- Height (Max)：-
- Package / Case：Radial
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DS1-175-0005
Common Mode Chokes Overview

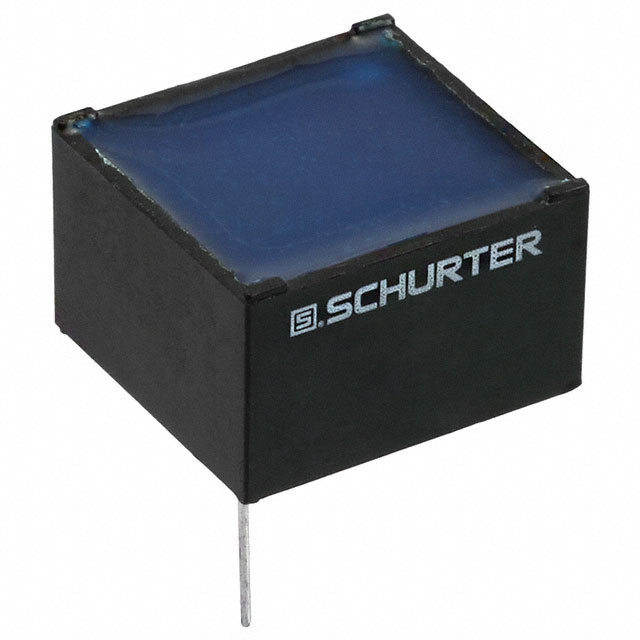

The DS1-175-0005 is a two-line common mode choke manufactured by SCHURTER Inc. It features a through-hole mounting type and is fully potted in resin for environmental protection. The component provides an inductance of 35 µH and supports a current rating of 3 A. It exhibits a DC resistance (DCR) of 26 mOhm. This storage choke is designed for electromagnetic interference suppression in electronic circuits requiring robust thermal and mechanical stability.
Common Mode Chokes Feature Summary
- Fully potted resin construction for enhanced durability
- Two-line configuration for common mode noise reduction
- Through-hole mounting for secure PCB integration
Common Mode Chokes Applications
- Electromagnetic interference filtering
- Power supply input stages
- Signal line protection
Common Mode Chokes Procurement Notes
Verify the specific datasheet version to confirm exact physical dimensions and pinout configurations before integration. Ensure that the through-hole footprint matches the target printed circuit board design. Confirm that the 3 A current rating and 35 µH inductance meet the system's operational requirements under maximum load conditions.
Common Mode Chokes Selection Notes
Select this component when a robust, potted common mode choke is required for through-hole assembly. The 26 mOhm DCR indicates low insertion loss, suitable for efficient power transmission. The 3 A rating defines the continuous operating limit, while the 35 µH value determines the attenuation characteristics for high-frequency noise.
Common Mode Chokes Part Context
This part belongs to the DS Series of common mode chokes from SCHURTER Inc. These components are engineered for general-purpose EMI suppression in industrial and consumer electronics. The series emphasizes reliability through potting techniques, ensuring performance stability across varying environmental conditions.
Common Mode Chokes Replacement Considerations
No public substitute part numbers are confirmed in the provided documentation. Verify compatibility with existing footprints and electrical specifications if considering alternative manufacturers.
