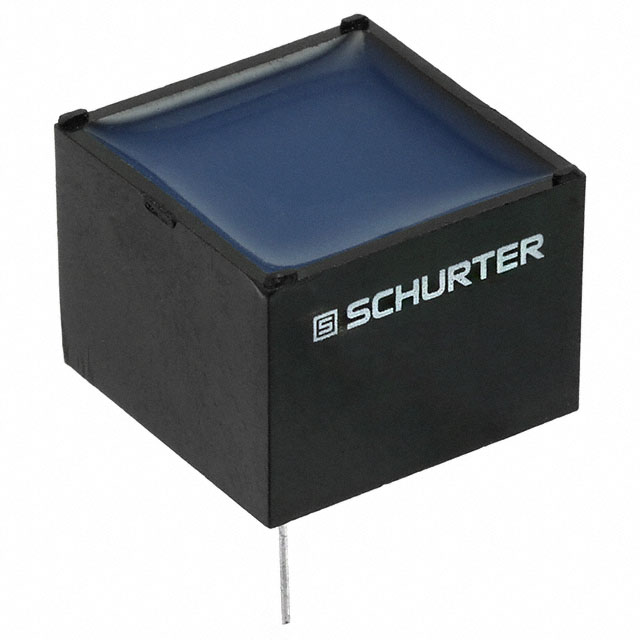

DS1-20-0001

$7.48

Description：CMC 630MA 2LN TH
Series：DS
Mfr：SCHURTER Inc.
Package：Bulk

SKU:04fedf180638 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DS1-20-0001 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 630MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DS1-20-0001

Description：CMC 630MA 2LN TH
Series：DS
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：630mA
DC Resistance (DCR) (Max)：700mOhm
Voltage Rating - DC：600V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.787" L x 0.787" W (20.00mm x 20.00mm)
Height (Max)：-
Package / Case：Radial
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DS1-20-0001

DS1-20-0001

Common Mode Chokes Overview

The DS1-20-0001 is a two-line common mode choke manufactured by SCHURTER Inc. It features a through-hole mounting configuration and is designed for storage choke applications. The component supports a current rating of 630mA with a DC resistance (DCR) of 700mOhms. It operates within a frequency range up to 1.2 kHz and belongs to the DS1 series.

Common Mode Chokes Feature Summary

Fully potted resin construction for environmental protection
Two-line design for common mode noise suppression
Through-hole mounting for secure PCB attachment

Common Mode Chokes Applications

Storage choke circuits
Common mode noise filtering in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and thermal characteristics. Ensure compatibility with through-hole assembly processes. Confirm that the 630mA current rating meets the circuit requirements under expected operating temperatures.

Common Mode Chokes Selection Notes

Select this component for applications requiring common mode interference suppression in low-current environments. The fully potted design offers robustness against mechanical stress and moisture. Verify that the 700mOhm DCR aligns with power loss constraints in the target circuit design.

Common Mode Chokes Part Context

This part belongs to the DS1 series of fixed inductors from SCHURTER Inc. The series focuses on common mode chokes suitable for various electronic protection needs. The DS1-20-0001 specifically addresses storage choke requirements with defined electrical parameters.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer guidelines for potential alternatives if sourcing issues arise.
