DS1-25-0001 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 1.4A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DS1-25-0001

Description：CMC 1.4A 2LN TH
Series：DS
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：1.4A
DC Resistance (DCR) (Max)：200mOhm
Voltage Rating - DC：600V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.984" L x 0.984" W (25.00mm x 25.00mm)
Height (Max)：0.591" (15.00mm)
Package / Case：Radial
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DS1-25-0001

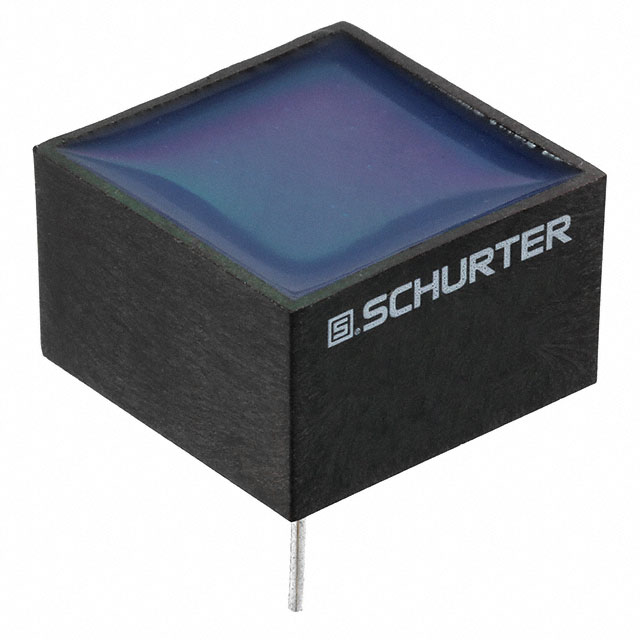

DS1-25-0001

Common Mode Chokes Overview

The DS1-25-0001 is a two-line common mode choke manufactured by SCHURTER Inc. It features through-hole mounting with radial leads and is fully potted in resin for environmental protection. The component has a maximum current rating of 1.4 A and a maximum DC resistance of 200 mOhm. It supports a DC voltage rating of 600 V and operates within a temperature range of -40°C to 125°C.

Common Mode Chokes Feature Summary

Fully potted resin construction for enhanced durability
Two-line configuration for common mode noise suppression
Through-hole radial lead mounting style

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in electronic circuits
Signal line protection

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and physical dimensions before integration. Ensure the supplier provides original manufacturer documentation to validate authenticity and compliance with specified operating temperatures and voltage ratings.

Common Mode Chokes Selection Notes

Select this component when a robust, fully potted common mode choke is required for through-hole assembly. The 1.4 A rating and 600 V DC capability suit applications needing reliable EMI filtering in compact spaces with moderate current demands.

Common Mode Chokes Part Context

This part belongs to SCHURTER's series of common mode chokes designed for general-purpose EMI suppression. It utilizes a two-line topology suitable for differential signal or power line filtering in various industrial and consumer electronic environments.
