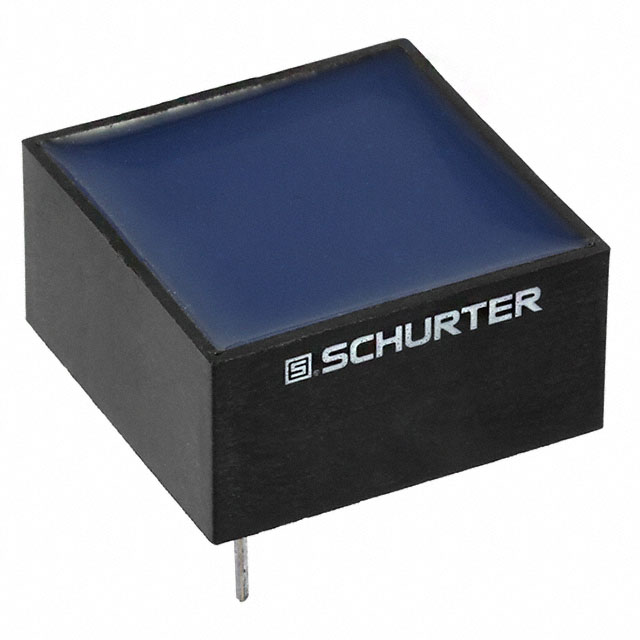

DS1-30-0004

$9.93

Description：CMC 4A 2LN TH
Series：DS
Mfr：SCHURTER Inc.
Package：Bulk

SKU:e0cff451c31d Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DS1-30-0004 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 4A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DS1-30-0004

Description：CMC 4A 2LN TH
Series：DS
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：4A
DC Resistance (DCR) (Max)：36mOhm
Voltage Rating - DC：600V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max)：-
Package / Case：Radial
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DS1-30-0004

DS1-30-0004

Common Mode Chokes Overview

The DS1-30-0004 is a leaded power inductor from Schurter, classified as a storage choke. It features radial termination for PCB mounting and operates within a temperature range of -40°C to +125°C. The component provides an inductance of 100 µH with a tolerance of 15%. It supports a maximum DC current of 4 A and exhibits a maximum DC resistance of 36 mOhms. The self-resonant frequency is specified at 1.5 MHz.

Common Mode Chokes Feature Summary

Fully potted resin construction for environmental protection
Radial leaded design suitable for printed circuit board mounting
High current handling capability of 4 A

Common Mode Chokes Applications

Power conversion circuits
EMI filtering applications

Common Mode Chokes Procurement Notes

Verify the specific datasheet version when ordering, as technical specifications may be updated by the manufacturer. Confirm that the radial lead configuration and PCB mounting style align with your assembly requirements. Ensure the operating temperature range meets your system's thermal conditions. Cross-reference the 100 µH inductance value against your circuit design needs.

Common Mode Chokes Selection Notes

Select this component for applications requiring a compact storage choke with high current capacity. The fully potted design offers robustness against mechanical stress and environmental factors. Consider the 36 mOhm DC resistance for efficiency calculations in power supply designs. Verify compatibility with standard PCB footprints for radial components before integration.

Common Mode Chokes Part Context

This part belongs to the DS series of power inductors manufactured by Schurter Inc. These components are engineered for use in electronic systems where reliable energy storage and noise suppression are critical. The series is designed to meet industry standards for performance and durability in various industrial and commercial electronics applications.
