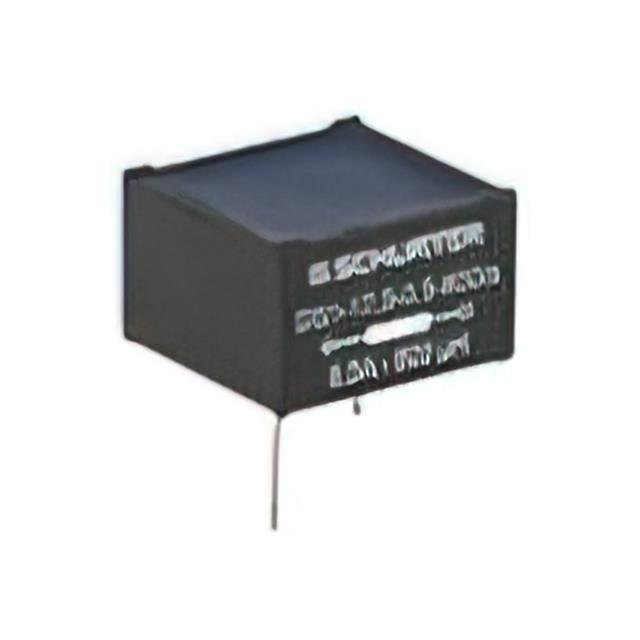

DS1-48-0001 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 3.15A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DS1-48-0001
- Description：CMC 3.15A 2LN TH
- Series：DS
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：3.15A
- DC Resistance (DCR) (Max)：160mOhm
- Voltage Rating - DC：600V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.890" L x 1.890" W (48.00mm x 48.00mm)
- Height (Max)：-
- Package / Case：Radial
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DS1-48-0001
Common Mode Chokes Overview
The DS1-48-0001 is a common mode choke manufactured by SCHURTER Inc., designed for through-hole mounting. It features a fully potted resin construction to ensure mechanical stability and environmental protection. The component operates within an ambient temperature range of -40°C to +125°C, providing reliable performance in demanding electronic applications.
Common Mode Chokes Feature Summary
- Fully potted resin construction for enhanced durability
- Through-hole mounting configuration
- Wide operating temperature range
Common Mode Chokes Applications
- General electronic equipment noise suppression
- Power supply input filtering
- Signal line interference reduction
Common Mode Chokes Procurement Notes
Verify the specific electrical parameters such as inductance value and rated current against the official datasheet before procurement. Confirm that the through-hole package dimensions match the target PCB layout requirements. Ensure the operating temperature rating aligns with the intended application environment to guarantee long-term reliability.
Common Mode Chokes Selection Notes
Select this component when a robust, potted common mode choke is required for through-hole assembly. Consider its wide temperature tolerance for environments subject to thermal stress. Evaluate the physical size constraints against available board space, ensuring compatibility with standard manufacturing processes for leaded components.
Common Mode Chokes Part Context
This part belongs to SCHURTER's series of common mode chokes, which are engineered for electromagnetic interference suppression. The product line emphasizes reliability through potting techniques and standardized mounting options, catering to industrial and consumer electronics markets requiring consistent noise filtration performance.
Common Mode Chokes Replacement Considerations
Consult the manufacturer's documentation for direct substitutes. Verify pinout compatibility and electrical specifications when considering alternative common mode chokes from other manufacturers to ensure seamless integration without circuit redesign.
