DS1-F10

Power Line Filter Modules Overview

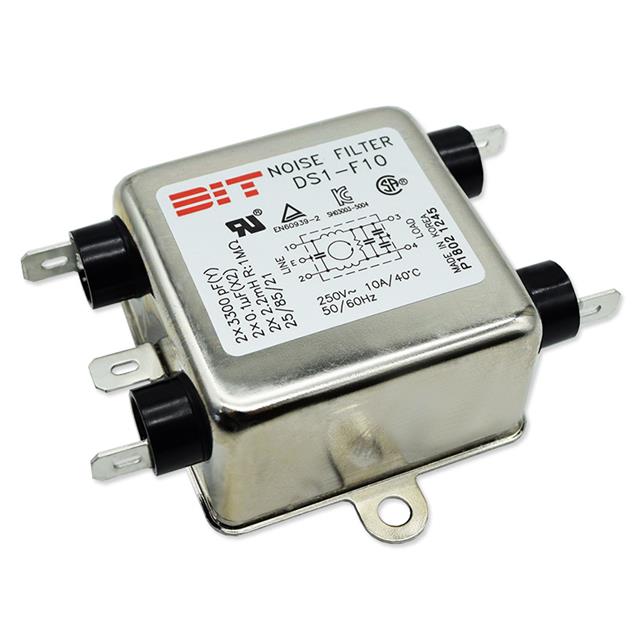

The DS1-F10 is a single-phase EMC/EMI power line filter module manufactured by DIT. It features a chassis mount configuration with quick-connect terminals for secure integration. The unit is rated for 250VAC and 250VDC operation at a continuous current of 10A, suitable for 50Hz to 60Hz frequency ranges. Designed as a single-stage filter, it operates within a temperature range of -25°C to 85°C. The component holds CSA, TUV, and UR certifications and complies with RoHS standards.

Power Line Filter Modules Feature Summary

• Metal case construction provides effective electromagnetic shielding
• Epoxy molded design ensures operational reliability
• Offers excellent filtering characteristics for both differential mode and common mode noise

Power Line Filter Modules Applications

• General industrial equipment power supply protection
• Electronic devices requiring EMI/EMI suppression
• Chassis-mounted power input stages

Power Line Filter Modules Procurement Notes

Verify the manufacturer part number DS1-F10 against official DIT documentation to confirm specifications. Ensure compatibility with 250VAC/VDC ratings and 10A current limits. Confirm certification requirements such as CSA, TUV, or UR are met for the target application region. Check terminal type compatibility for quick-connect installation.

Power Line Filter Modules Selection Notes

Select this component when a single-stage, chassis-mount solution is required for 10A applications. Verify that the operating environment falls within the -25°C to 85°C temperature range. Ensure the system voltage does not exceed 250VAC or 250VDC. Confirm that quick-connect terminals suit the wiring infrastructure.

Power Line Filter Modules Part Context

This component belongs to the DS1 series of power line filter modules from DIT. These filters are designed for general-purpose EMI/EMC suppression in AC and DC power lines. The series utilizes metal cases for shielding and epoxy molding for durability, targeting robust industrial and commercial environments.

Power Line Filter Modules Replacement Considerations

Consult official DIT documentation for verified substitute part numbers within the DS1 series or equivalent models from other manufacturers. Ensure replacement parts match the 10A rating, 250VAC/VDC voltage, and chassis mount form factor.
