DS1-T10

Power Line Filter Modules Overview

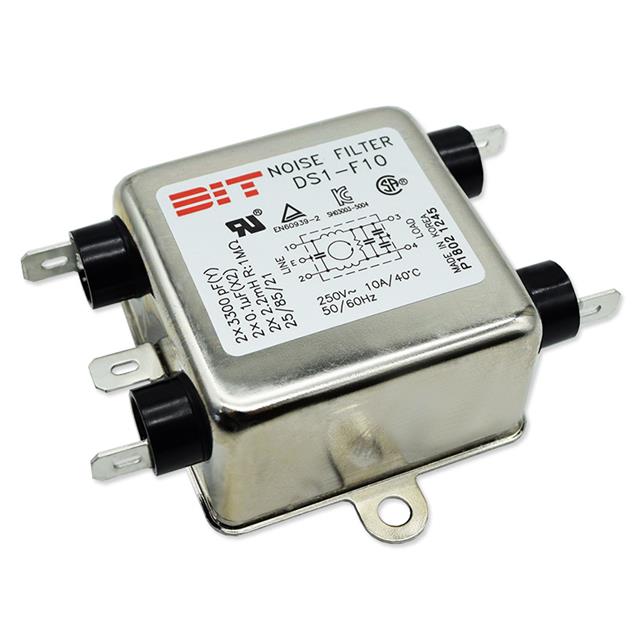

The DS1-T10 is a single-phase EMC/EMI power line filter module manufactured by DIT. It supports a rated AC voltage of 250V and a rated DC voltage of 250V, with a continuous current rating of 10 A. The device operates within a frequency range of 50 to 60 Hz and features a single-stage filtering configuration. Designed for chassis mounting, it utilizes an M4 threaded post for installation and quick-connect terminals for electrical connection. The unit functions reliably within an operating temperature range of -25°C to 85°C.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression through metal case shielding
• Delivers excellent filtering characteristics for both differential mode and common mode noise
• Ensures compliance with FCC and FTZ standards for industrial applications

Power Line Filter Modules Applications

• Industrial equipment requiring EMI/EMC compliance
• Commercial electronic systems needing power line noise reduction
• General-purpose applications conforming to FCC regulations

Power Line Filter Modules Procurement Notes

Verify the specific terminal style and mounting hardware requirements against the system design before ordering. Confirm that the M4 threaded post installation method aligns with the chassis layout. Ensure the 10 A current rating and 250 V voltage limits are sufficient for the target circuit conditions. Check for CSA, TUV, and UR certification requirements in the final product documentation.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is adequate for the required attenuation levels. Consider the metal case construction if enhanced shielding is necessary compared to plastic alternatives. Verify that the quick-connect termination style matches the available wiring harness or PCB footprint. Ensure the operating temperature range covers the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This model belongs to the DS1 series of power line filter modules from DIT. The series offers various configurations for single-phase applications. The DS1-T10 specifically denotes the variant with M4 threaded post mounting and 10 A capacity. Other variants in the series may differ in terminal style, such as fast-on connectors, or current ratings.
