DS100

Power Line Filter Modules Overview

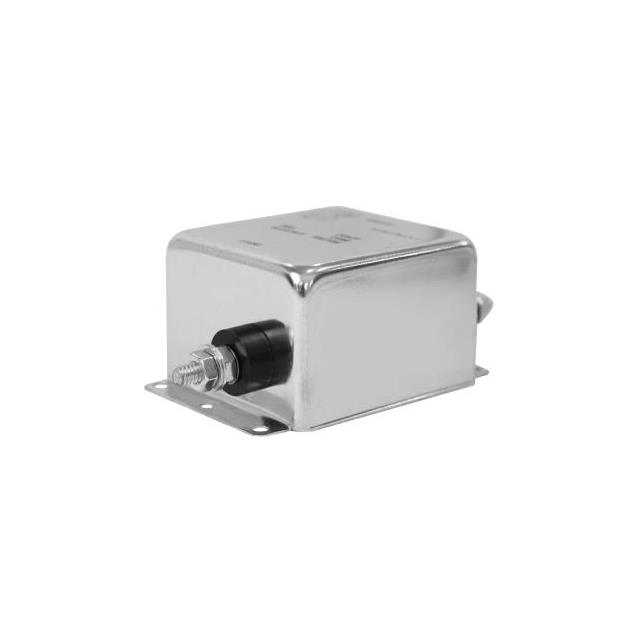

The DS100 is a DC EMC/EMI line filter manufactured by Astrodyne TDI. It is rated for a current of 100 A and a voltage of 60 V. The device utilizes a single-stage filtering architecture to suppress electromagnetic interference in direct current circuits. It employs threaded post termination with an M6 specification for secure electrical connections. This component is designed for robust performance in demanding power applications requiring effective noise reduction.

Power Line Filter Modules Feature Summary

• Single-stage design for efficient DC noise suppression
• High current handling capability up to 100 A
• Threaded post termination with M6 specification

Power Line Filter Modules Applications

• DC power distribution systems
• Electromagnetic interference suppression in industrial equipment
• Protection of sensitive electronic loads from line noise

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the DS100 to confirm mechanical dimensions and detailed electrical characteristics before integration. Ensure that the M6 threaded post termination matches the mounting hardware available in the target assembly. Confirm compliance requirements such as UL or CSA if applicable to the final product environment.

Power Line Filter Modules Selection Notes

Select the DS100 when a high-current DC filter is required for single-stage noise attenuation. The 100 A rating and 60 V limit define the operational boundaries. Consider the threaded post termination method for installation compatibility. Evaluate space constraints against the physical footprint of the unit to ensure fit within the enclosure.

Power Line Filter Modules Part Context

The DS100 belongs to the Astrodyne TDI portfolio of power line filters, which includes various AC and DC solutions. While other models like the DSC1000 series focus on AC mains filtering, the DS100 addresses direct current applications. This distinction ensures appropriate technology selection for either alternating or direct current noise mitigation needs.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available for the DS100. Verify specifications carefully when considering alternative components to ensure current and voltage ratings meet system requirements.
