DS96F174CJ

Overview

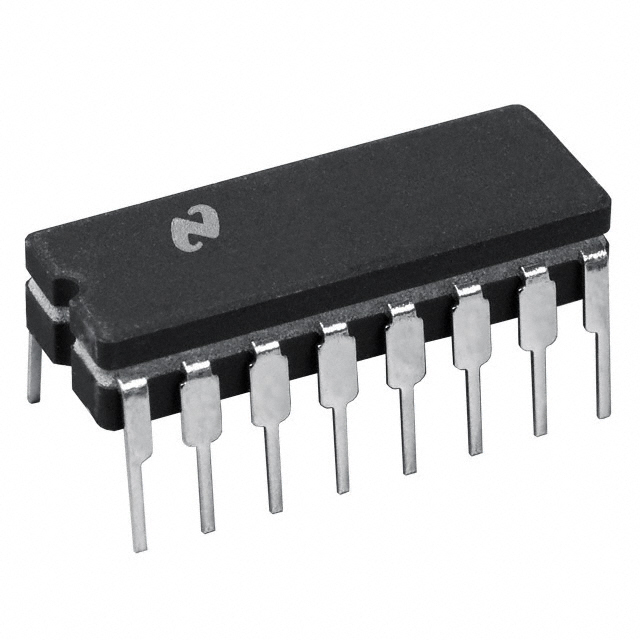

The DS96F174CJ is a quad differential driver manufactured by Texas Instruments, belonging to the DS96F174 series. It is designed for EIA-485 and EIA-422 communication standards. The device features four independent differential drivers in a single package. It operates within a supply voltage range of 3.0 V to 5.5 V. The component supports data rates up to 10 Mbps. It is housed in a 16-pin SOIC (Small Outline Integrated Circuit) package with a junction temperature range from -40°C to +85°C.

Feature Summary

• Provides four independent differential driver channels for robust signal transmission.
• Compatible with EIA-485 and EIA-422 bus interface standards.
• Supports high-speed data transfer rates suitable for industrial communication.
• Operates reliably across extended industrial temperature ranges.

Applications

• RS-485 multi-drop communication networks
• EIA-422 point-to-point or multi-point links
• Industrial automation control systems
• Building automation and security systems

Procurement Notes

Verify the specific suffix 'CJ' corresponds to the 16-pin SOIC package and commercial temperature grade. Confirm RoHS compliance status through the official datasheet or manufacturer documentation. Ensure the supplier provides valid traceability documents. Check for any recent product lifecycle notices regarding obsolescence or recommended replacements before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring quad differential driving capability for RS-485 or RS-422 buses. It is suitable for applications needing moderate data rates up to 10 Mbps. Consider thermal management requirements if operating near the upper temperature limit. Compare against similar quad drivers if higher speed or lower power consumption is required for the specific system design.

Part Context

The DS96F174CJ is part of Texas Instruments' broader family of differential line drivers. It complements receivers like the DS96F173 to form complete transceiver solutions. This series is widely used in legacy and current industrial designs requiring reliable half-duplex or full-duplex serial communication over long distances with noise immunity.

Replacement Considerations

Check for direct pin-compatible alternatives such as the SN75LBC174 or other TI quad differential drivers. Verify electrical specifications match exactly, particularly output voltage levels and drive strength. Ensure the replacement supports the same EIA standards and package dimensions for board-level compatibility.
