DSA9-12F

Single Diodes Overview

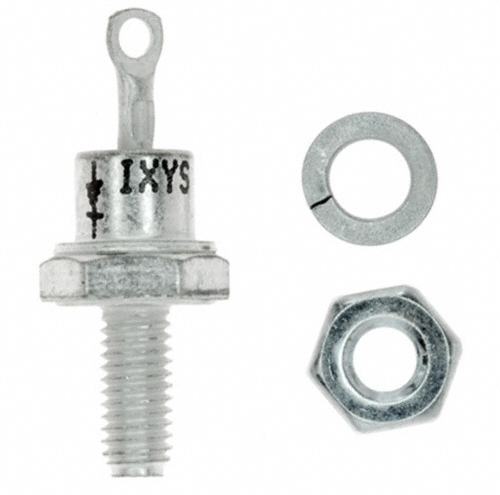

The IXYS DSA9-12F is a high-voltage rectifier diode designed for chassis and stud mounting. It features a maximum repetitive peak reverse voltage of 1200V and an average forward current rating of 9A. The device utilizes planar glassivated chips within the JEDEC DO-203AA package, ensuring robust performance in demanding power conversion environments.

Single Diodes Feature Summary

• Planar glassivated chip technology for enhanced reliability
• Chassis and stud mount configuration for efficient thermal management
• Compliance with international JEDEC DO-203AA packaging standards

Single Diodes Applications

• DC power equipment supplies
• Industrial rectification circuits
• High-voltage power conversion systems

Single Diodes Procurement Notes

Verify the specific suffix and marking code against the manufacturer's latest datasheet to ensure compatibility with your design requirements. Confirm that the component meets all relevant safety and environmental regulations applicable to your target market before finalizing procurement decisions.

Single Diodes Selection Notes

Select this component when a rugged, stud-mountable diode with 1200V blocking capability is required. Ensure the mechanical mounting interface matches the DO-203AA footprint and that the thermal resistance characteristics align with the system's heat dissipation strategy for optimal performance.

Single Diodes Part Context

This part belongs to the IXYS DSA series of high-power rectifiers. These components are engineered for industrial applications requiring high surge current handling and stable operation under high reverse bias conditions, serving as critical elements in AC-to-DC conversion stages.

Single Diodes Replacement Considerations

Consult official substitution guides for equivalent parts from IXYS or other manufacturers offering compatible DO-203AA packages with matching 1200V and 9A ratings. Verify electrical parameters and mechanical dimensions before implementation.
