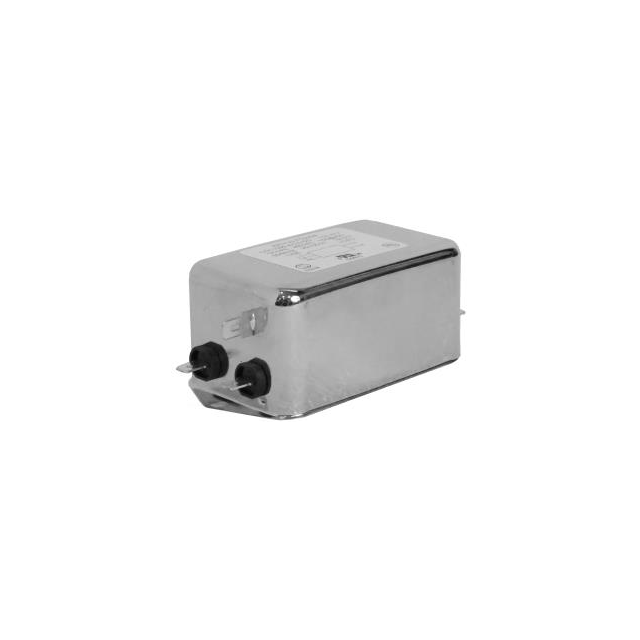

DSC1000-3-0-0-QD is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Astrodyne TDI. Its product description is LINE FILTER 250VAC 16A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for DSC1000-3-0-0-QD
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：DSC1000
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, cURus, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for DSC1000-3-0-0-QD
Power Line Filter Modules Overview
The Astrodyne TDI DSC1000-3-0-0-QD is a single-phase, two-stage power line filter designed for chassis mounting. It features screw termination and operates at 50 Hz or 60 Hz with a voltage rating of 250 VAC. The component has a current rating of 16 A and a maximum leakage current of 3.5 mA. Physical dimensions are 119 mm in length and 45 mm in height. It complies with UL, CSA, and EN standards.
Power Line Filter Modules Feature Summary
- Dual-stage filtering architecture for high-performance noise attenuation
- Chassis mount design with screw termination for secure installation
- Compliance with major international safety standards including UL, CSA, and EN
Power Line Filter Modules Applications
- Industrial equipment requiring EMI suppression
- Medical devices needing certified power line filtration
- Test and measurement instrumentation
Power Line Filter Modules Procurement Notes
Verify the specific suffix QD against official datasheets to confirm terminal type and packaging configuration. Ensure the application environment remains within the specified temperature range and voltage limits. Cross-reference the part number with manufacturer documentation to confirm current availability status and compliance certifications before procurement.
Power Line Filter Modules Selection Notes
Select this model when dual-stage attenuation is required for 16 A single-phase applications. Compare physical dimensions against available chassis space. Verify that the screw termination method aligns with existing wiring infrastructure. Confirm that the 3.5 mA leakage current meets system safety requirements.
Power Line Filter Modules Part Context
This component belongs to the Astrodyne TDI DSC1000 series, which offers various configurations for single-phase power line filtering. The series provides options for different current ratings and termination styles to suit diverse industrial and commercial power conditioning needs.
Power Line Filter Modules Replacement Considerations
Consult official substitution guides for equivalent performance. Verify compatibility of mounting holes and terminal spacing with existing designs.
