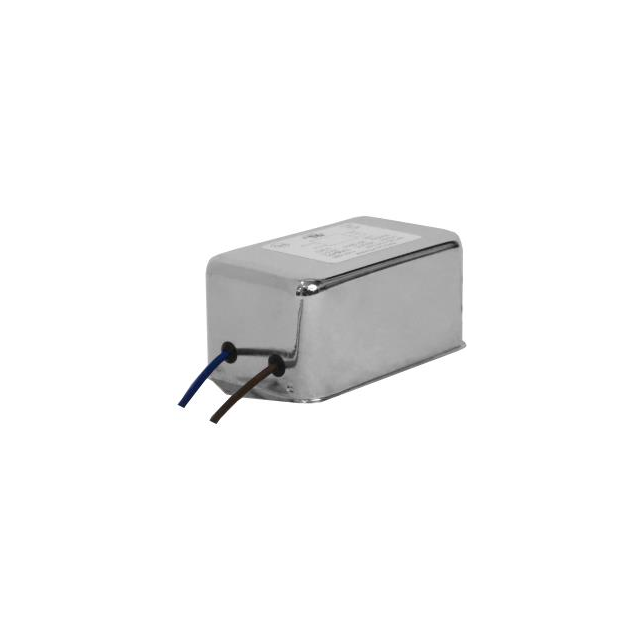

DSC1000-3-0-0-W is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Astrodyne TDI. Its product description is LINE FILTER 250VAC 16A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for DSC1000-3-0-0-W
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：DSC1000
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, cURus, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for DSC1000-3-0-0-W
Power Line Filter Modules Overview
The Astrodyne TDI DSC1000-3-0-0-W is a single-phase, two-stage power line filter designed for high-performance electromagnetic interference suppression. It features a chassis mount configuration with screw termination and operates at 250 VAC and 16 A. The unit has a leakage current of 3.5 mA and supports frequencies of 50 Hz and 60 Hz. Certified by UL, CSA, and EN standards, it functions within a temperature range of -25°C to +40°C.
Power Line Filter Modules Feature Summary
- Dual-stage filtering architecture for enhanced noise attenuation
- Chassis mount design with screw terminal connections
- Compliance with UL, CSA, and EN safety standards
Power Line Filter Modules Applications
- Industrial equipment requiring EMI suppression
- Medical device power inputs
- Test and measurement instrumentation
Power Line Filter Modules Procurement Notes
Verify the specific suffix against official datasheets to confirm terminal type and certification status. Ensure the operating voltage and current ratings match the system requirements. Confirm compliance with regional safety regulations before integration into final assemblies.
Power Line Filter Modules Selection Notes
Select this model for applications requiring robust dual-stage filtration in a compact chassis-mount form factor. Consider the 16 A current rating and 250 VAC input limits when designing power circuits. Evaluate thermal management needs given the specified operating temperature range.
Power Line Filter Modules Part Context
This component belongs to the DSC1000 series, which offers various configurations for single-phase power line filtering. The series provides options for different current ratings and termination styles to suit diverse industrial and commercial power supply protection needs.
Power Line Filter Modules Replacement Considerations
Consult official substitution guides for equivalent performance. Verify that any alternative part matches the electrical ratings and physical dimensions for direct replacement.
