DSC2000-0-0-QD

Power Line Filter Modules Overview

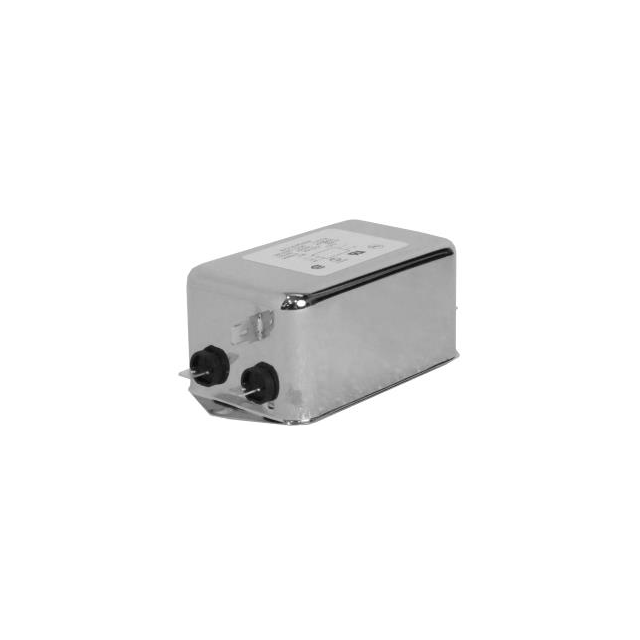

The Astrodyne TDI DSC2000-0-0-QD is a high-performance single-phase dual-stage power line filter designed for chassis mounting. It features a voltage rating of 250 VAC and supports a rated current of 20A. The unit utilizes a quick disconnect (QD) connector interface, facilitating rapid installation and maintenance. Certified to UL1283 standards, it operates at frequencies of 50 Hz and 60 Hz. This component provides effective electromagnetic interference suppression for sensitive electronic systems requiring robust noise filtration.

Power Line Filter Modules Feature Summary

• Dual-stage filtering architecture for enhanced noise attenuation
• Quick disconnect connector design for simplified integration
• Certified compliance with UL1283 safety standards

Power Line Filter Modules Applications

• General purpose electronic equipment EMC mitigation
• Medical equipment power line filtering
• Appliance noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific connector type matches the system requirements, as the QD suffix indicates a quick disconnect interface. Confirm that the 20A current rating and 250VAC voltage specifications align with the target circuit parameters. Ensure chassis mounting provisions are available in the enclosure design to accommodate the physical form factor of this dual-stage filter module.

Power Line Filter Modules Selection Notes

Select this model when dual-stage attenuation is required for single-phase AC lines up to 20A. The QD connector option is suitable for applications prioritizing ease of assembly or field replacement over permanent wiring. Consider the chassis mounting requirement during mechanical design. Verify that the operating frequency range of 50/60 Hz meets the local power grid standards for the intended deployment region.

Power Line Filter Modules Part Context

This component belongs to the DSC2000 series of power line filters from Astrodyne TDI. The series offers various configurations including wire and stud options, with the QD variant specifically providing a quick-disconnect interface. These filters are engineered for high-performance EMI suppression in demanding environments, balancing electrical specifications with robust construction for reliable operation in industrial and medical settings.

Power Line Filter Modules Replacement Considerations

Consult official Astrodyne TDI documentation for direct cross-references. Alternative models within the DSC2000 series may offer different connector types such as W (wire) or S (stud) if the QD interface is unsuitable. Ensure any substitute maintains the 20A current rating and dual-stage topology to preserve original filtering performance.
