DSC8102CI5

Overview

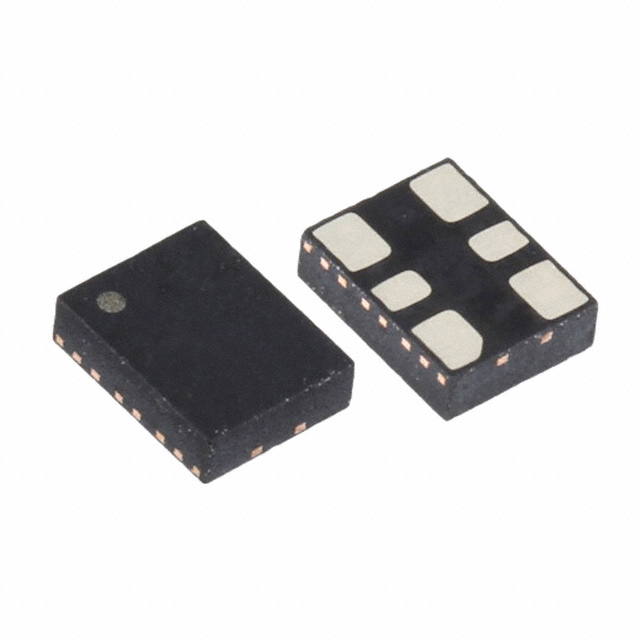

The DSC8102CI5 is a MEMS programmable oscillator manufactured by Microchip Technology. It operates within a frequency range of 10 MHz to 460 MHz with a stability of 10 ppm. The device supports LVPECL output format and functions on a supply voltage between 2.25 V and 3.6 V. It features a QFN-4 surface-mount package measuring 3.2 mm x 2.5 mm. The component includes standby and enable/disable functions, with an operating temperature range from -40 °C to +85 °C.

Feature Summary

• MEMS-based programmable architecture for flexible clock generation
• LVPECL output interface for high-speed digital applications
• Integrated standby and enable/disable control functionality

Applications

• High-performance computing systems requiring precise clocking
• Telecommunications infrastructure equipment
• Industrial automation controllers
• Network switching devices

Procurement Notes

Verify the specific frequency configuration required for the application, as this part is blank-programmable and requires user initialization. Confirm that the LVPECL output format aligns with the receiving logic levels. Ensure the operating temperature range meets environmental specifications. Check for RoHS compliance status if restricted substances are a concern. Validate the QFN-4 package dimensions against PCB footprint constraints.

Selection Notes

Select this component when a programmable MEMS oscillator with LVPECL outputs is needed. Consider the 10 ppm stability requirement for timing accuracy. Evaluate the 2.25 V to 3.6 V supply range compatibility. Assess the need for standby functionality in power-sensitive designs. Compare against other DSC8102 variants for different output formats or temperature ranges.

Part Context

The DSC8102CI5 belongs to the DSC8102 series of programmable oscillators from Microchip Technology. This family utilizes MEMS technology to replace traditional quartz crystals. The CI5 suffix typically denotes the commercial temperature range and LVPECL output type. These devices offer flexibility in frequency selection compared to fixed-frequency oscillators.

Replacement Considerations

Public confirmed substitute part numbers: None available.
