DSEI30-10AR

Single Diodes Overview

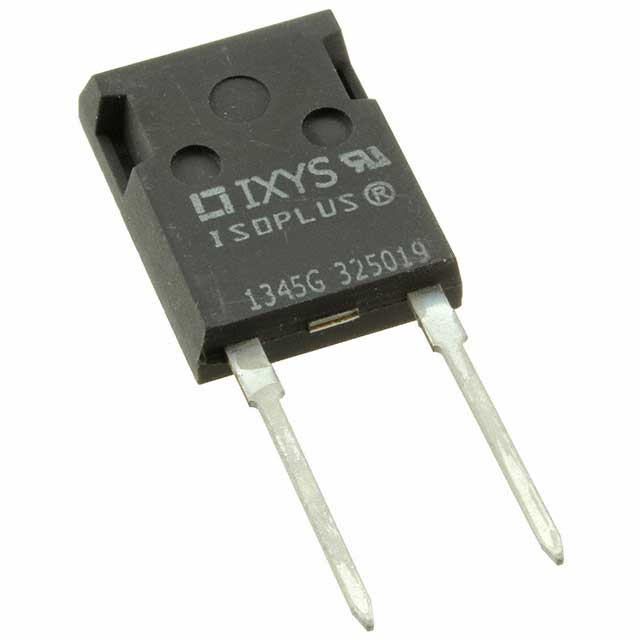

The DSEI30-10AR is a single-phase silicon rectifier diode manufactured by IXYS, now part of Littelfuse. It features a maximum continuous forward current of 30 A and a repetitive peak reverse voltage rating of 1000 V. The component utilizes the ISOPLUS247 package with two pins for panel mounting. Designed for high-power applications, it offers robust performance in industrial and energy conversion systems requiring reliable rectification.

Single Diodes Feature Summary

• High-voltage capability with 1000 V reverse blocking rating
• Robust 30 A continuous forward current handling
• ISOPLUS247 panel-mount package for efficient thermal management
• Single-element configuration for straightforward circuit integration

Single Diodes Applications

• Single-phase bridge rectification
• Energy braking circuits
• Interface circuits in offset detection systems
• Multiplication circuits for amplitude modulation

Single Diodes Procurement Notes

Verify the manufacturer designation as both IXYS and Littelfuse due to corporate acquisition history. Confirm the specific package type is ISOPLUS247 and that the device is a single-element diode. Ensure the voltage rating matches the 1000 V requirement for your application design.

Single Diodes Selection Notes

Select this component when a single-phase rectifier with 1000 V blocking voltage and 30 A current capacity is required. The ISOPLUS247 package is suitable for panel-mounted applications where efficient heat dissipation is critical. Consider its use in industrial drives and power supplies where reliability under high stress is necessary.

Single Diodes Part Context

This diode belongs to the DSEI series of fast recovery rectifiers from IXYS/Littelfuse. The series is known for high efficiency and reliability in power electronics. The DSEI30-10AR specifically targets applications needing moderate current handling with high voltage isolation in a compact panel-mount form factor.

Single Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative models from other manufacturers.
