DSF-18-0002

$6.01

Description：CMC 600MA 2LN TH
Series：DSF
Mfr：SCHURTER Inc.
Package：Bag

SKU:6e82761ea353 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

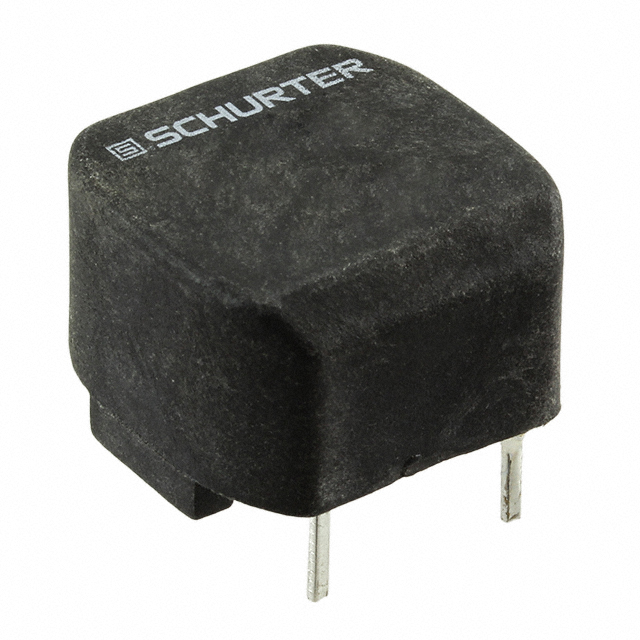

DSF-18-0002 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 600MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DSF-18-0002

Description：CMC 600MA 2LN TH
Series：DSF
Mfr：SCHURTER Inc.
Package：Bag
Filter Type：-
Number of Lines：2
Current Rating (Max)：600mA
DC Resistance (DCR) (Max)：360mOhm
Voltage Rating - DC：600V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.717" L x 0.701" W (18.20mm x 17.80mm)
Height (Max)：0.496" (12.60mm)
Package / Case：Radial - 4 Leads
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DSF-18-0002

DSF-18-0002

Common Mode Chokes Overview

The DSF-18-0002 is a two-line common mode choke manufactured by Schurter Inc., designed for through-hole mounting. It features an inductance of 500 µH with a tolerance of 15%, supporting a maximum DC current of 600 mA. The component exhibits a maximum DC resistance of 360 mΩ and operates within a temperature range of -40°C to +125°C. Its physical dimensions are 18.2 mm in length, 17.8 mm in width, and 12.6 mm in height.

Common Mode Chokes Feature Summary

Flat design construction optimized for space-constrained applications
Two-line configuration for effective common mode noise suppression
Through-hole termination style for robust PCB integration

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in electronic circuits
Common mode noise reduction in signal lines

Common Mode Chokes Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer documentation may update electrical tolerances or mechanical drawings over time. Confirm that the through-hole footprint matches the target PCB layout before finalizing procurement decisions. Ensure compatibility with assembly processes regarding lead-free requirements if applicable to the end product specifications.

Common Mode Chokes Selection Notes

Select this component when a compact, flat-profile common mode choke is required for low-current applications up to 600 mA. The 500 µH inductance value provides significant impedance for high-frequency noise attenuation. Consider the 360 mΩ DC resistance impact on voltage drop when designing power paths. The wide operating temperature range supports use in environments subject to thermal variation.

Common Mode Chokes Part Context

This part belongs to Schurter's DSF series of storage chokes and common mode filters. The series is characterized by its flat geometry, which facilitates efficient board space utilization compared to traditional cylindrical inductors. The DSF-18-0002 specifically addresses needs for moderate inductance values in compact form factors.
