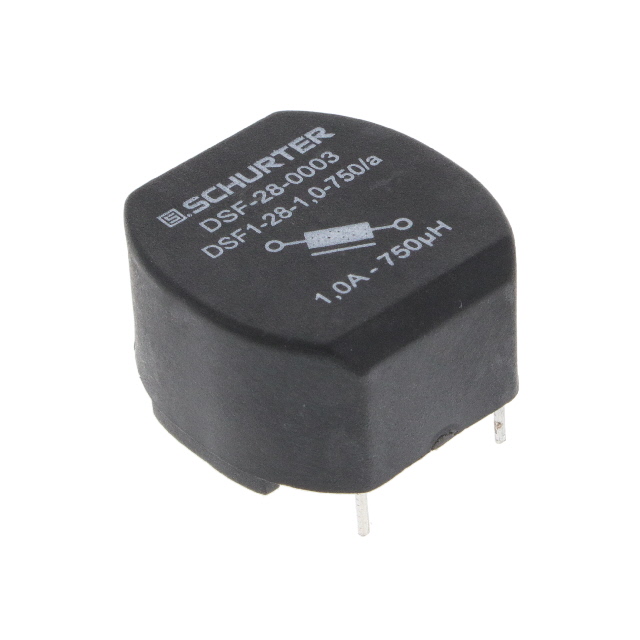

DSF-28-0003

$7.06

Description：CMC 1A 2LN TH
Series：DSF
Mfr：SCHURTER Inc.
Package：Bulk

SKU:237aa82a6c76 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DSF-28-0003 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 1A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DSF-28-0003

Description：CMC 1A 2LN TH
Series：DSF
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：360mOhm
Voltage Rating - DC：600V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.114" L x 1.079" W (28.30mm x 27.40mm)
Height (Max)：-
Package / Case：Nonstandard
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DSF-28-0003

DSF-28-0003

Common Mode Chokes Overview

The DSF-28-0003 is a two-line common mode choke manufactured by SCHURTER Inc., designed for through-hole mounting. It features a flat design construction with a maximum DC resistance of 360 mOhms and supports a nominal voltage of 600V. The component operates within a temperature range of -40°C to +125°C and handles a current rating of 1A.

Common Mode Chokes Feature Summary

Two-line configuration for common mode noise suppression
Flat design profile suitable for space-constrained applications
Through-hole termination style for PCB integration

Common Mode Chokes Applications

Common mode noise filtering in power lines
Electromagnetic interference suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the DSF-28-0003 to confirm exact electrical tolerances and mechanical dimensions before finalizing designs. Ensure compatibility with existing PCB footprints and thermal management requirements. Cross-reference manufacturer documentation for any recent product changes or compliance updates.

Common Mode Chokes Selection Notes

Select this component when a low-profile, two-line common mode choke is required for through-hole assembly. Consider the 1A current rating and 360 mOhms DCR limits against circuit requirements. Evaluate the -40°C to +125°C operating range against environmental conditions.

Common Mode Chokes Part Context

This part belongs to the DSF-28 series of common mode chokes from SCHURTER Inc. The series offers various current ratings and inductance values within a standardized flat package form factor, facilitating consistent board layout strategies across different power line filtering needs.
