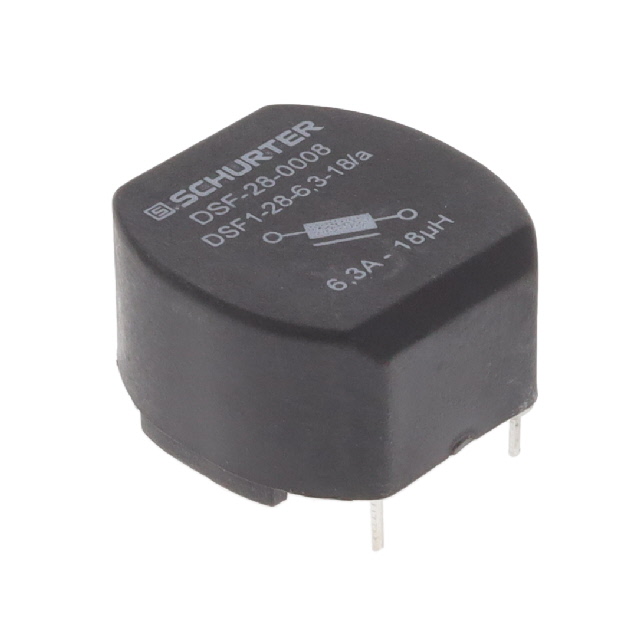

DSF-28-0008 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 4.5A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DSF-28-0008
- Description：CMC 4.5A 2LN TH
- Series：DSF
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：4.5A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：600V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.114" L x 1.079" W (28.30mm x 27.40mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DSF-28-0008
Common Mode Chokes Overview
The DSF-28-0008 is a common mode choke manufactured by SCHURTER Inc., designed for through-hole mounting on printed circuit boards. This component features a flat design with radial termination and operates within a temperature range of -40°C to +125°C. It supports a maximum DC current of 4.5A and exhibits a minimum DC resistance of 10mOhms. The unit has a self-resonant frequency of 18MHz and utilizes standard terminals for secure PCB integration.
Common Mode Chokes Feature Summary
- Provides effective common mode noise suppression for two-line circuits
- Features a compact flat physical design suitable for space-constrained applications
- Supports high thermal stability across a wide operating temperature range
Common Mode Chokes Applications
- Power supply input filtering
- EMI suppression in electronic equipment
- Signal integrity protection in data lines
Common Mode Chokes Procurement Notes
Verify the specific datasheet version for the DSF-28-0008 to confirm exact electrical tolerances and mechanical dimensions before finalizing designs. Ensure that the through-hole footprint matches the target PCB layout. Cross-reference the manufacturer's latest compliance documentation to confirm RoHS status and material declarations for regulatory adherence.
Common Mode Chokes Selection Notes
Select this component when a robust common mode choke with high current handling capability is required for through-hole assembly. The 4.5A rating makes it suitable for applications demanding significant current capacity without excessive heat generation. Consider the flat profile for low-profile enclosure constraints and verify compatibility with automated insertion processes if applicable.
Common Mode Chokes Part Context
This part belongs to the DSF series of power inductors from SCHURTER, which are characterized by their flat construction and leaded termination style. The series is engineered for reliable performance in various industrial and consumer electronics environments, offering a balance between electrical performance and mechanical durability for PCB-mounted implementations.
Common Mode Chokes Replacement Considerations
Consult official substitution lists or equivalent product catalogs from SCHURTER for verified alternatives. Ensure any replacement maintains identical current ratings, inductance values, and physical dimensions to guarantee seamless integration without requiring PCB redesign.
