DSHP-6148-D6D1

Common Mode Chokes Overview

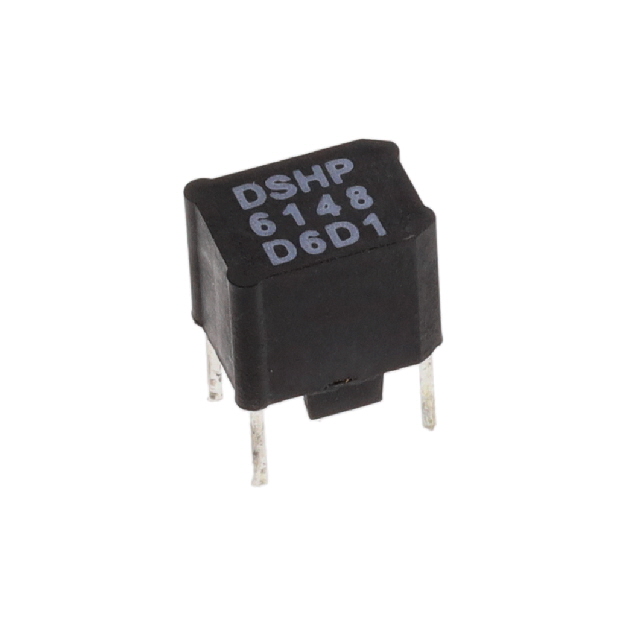

The DSHP-6148-D6D1 is a storage choke manufactured by SCHURTER Inc., designed for through-hole mounting. It features radial termination and operates within a temperature range of -40°C to 125°C. The component has physical dimensions of 10.70mm in length and 8.20mm in width. It provides an inductance of 100µH with a current rating of 0.6A and a DC resistance of 550mΩ.

Common Mode Chokes Feature Summary

• Compact storage choke design suitable for space-constrained applications
• Radial through-hole termination for standard PCB integration
• High operating temperature capability up to 125°C

Common Mode Chokes Applications

• Line common mode filtering
• Power supply input stages
• General-purpose signal or power line chokes

Common Mode Chokes Procurement Notes

Verify the specific datasheet version when ordering, as manufacturing details may evolve. Confirm that the radial lead style matches your assembly equipment capabilities. Ensure the 10.70mm x 8.20mm footprint fits your board layout constraints before finalizing procurement plans.

Common Mode Chokes Selection Notes

Select this component when a compact, high-temperature storage choke is required for through-hole assembly. The 100µH value and 0.6A rating define its electrical limits. Consider the 550mΩ DC resistance impact on circuit efficiency during selection.

Common Mode Chokes Part Context

This part belongs to the DSHP series of storage chokes from SCHURTER Inc. These components are engineered for reliability in electronic circuits requiring magnetic energy storage or noise suppression. The series offers various inductance values and current ratings to suit different power management needs.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs by matching inductance, current rating, and physical dimensions if sourcing alternatives.
