DSS6NZ82A103Q91A

Overview

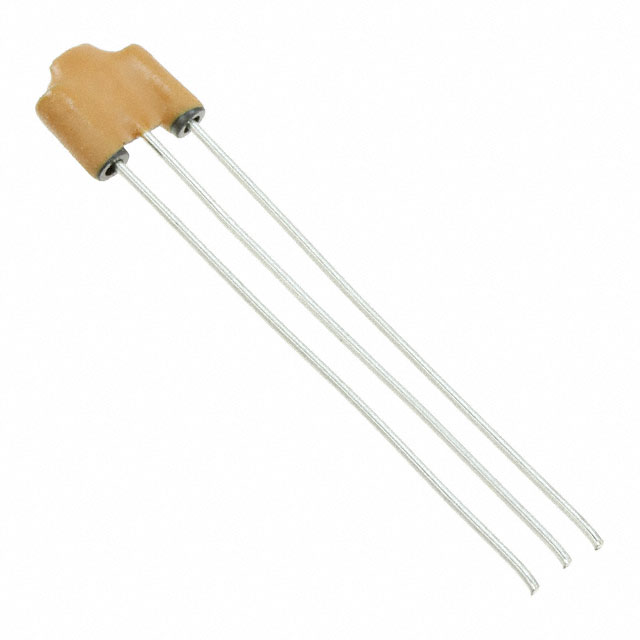

The Murata DSS6NZ82A103Q91A is a three-terminal feedthrough capacitor from the EMIFIL DSS series. It features a capacitance of 10 nF with a tolerance of 30%. The component has a DC voltage rating of 100 V and a current rating of 6 A. It utilizes radial termination and operates within a temperature range of -10°C to +60°C. Physical dimensions include an 8 mm diameter, 10 mm height, and 2.54 mm width. The unit weighs 420 mg and offers an insulation resistance of 5 GOhms.

Feature Summary

• Integrates a built-in bead for enhanced high-frequency noise suppression
• Provides wideband filtering effectiveness with minimal insertion loss
• Supports direct mounting on a 2.54 mm pitch

Applications

• Electromagnetic interference (EMI) suppression in electronic circuits
• Radio frequency interference (RFI) filtering applications
• Power line filtering for sensitive equipment

Procurement Notes

Verify component status as obsolete or not recommended for new designs before integration. Confirm availability through authorized distributors as supply may be restricted. Ensure compatibility with existing thermal and mechanical constraints during replacement planning.

Selection Notes

Select this component for applications requiring compact EMI/RFI filtering with specific 10 nF capacitance. Consider the 6 A current rating and 100 V DC voltage limits. Evaluate the radial lead type and 2.54 mm pitch requirements against board layout specifications.

Part Context

This part belongs to the Murata EMIFIL DSS series, characterized by compact lead-type construction. It serves as a specialized filter for suppressing electromagnetic disturbances. The design balances filtering performance with physical size constraints for dense circuit assemblies.

Replacement Considerations

The related part number DSS6NZ82A103Q92A shares identical electrical specifications including 10 nF capacitance, 100 V rating, and 6 A current handling. Verify package and terminal compatibility when substituting.
