DSS6NZ82A103U31A

Overview

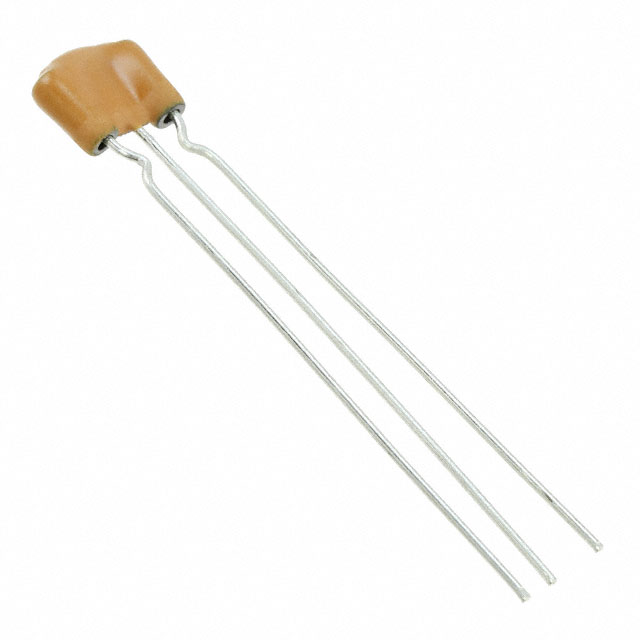

The Murata DSS6NZ82A103U31A is a three-terminal feed-through capacitor from the EMIFIL DSS6 series. It features a capacitance of 10 nF with a tolerance of ±30%. The device has a DC voltage rating of 100 V and a current rating of 6 A. Physical dimensions include an 8 mm diameter, 10 mm height, and 2.54 mm width. It operates within a temperature range of -10°C to +60°C and provides an insulation resistance of 5 GOhms.

Feature Summary

• Integrates a built-in bead for enhanced high-frequency noise suppression
• Utilizes a radial three-terminal structure for effective EMI filtering
• Supports high continuous current handling capabilities

Applications

• Power supply input/output filtering
• DC-DC converter noise reduction
• Electronic equipment EMI suppression

Procurement Notes

Verify component authenticity through authorized channels due to potential availability constraints. Confirm RoHS compliance status via official documentation before integration. Ensure storage conditions maintain specified insulation resistance values. Validate lead-free manufacturing standards against project requirements. Cross-reference datasheet revisions to confirm parameter stability.

Selection Notes

Select this component when high-current filtering is required alongside compact form factors. The three-terminal design offers superior performance compared to standard two-terminal capacitors in high-noise environments. Verify that the 100 VDC rating meets circuit voltage requirements. Consider the specific operating temperature range limits during thermal analysis.

Part Context

This part belongs to the Murata EMIFIL DSS6 series of feed-through capacitors. These components are designed for robust electromagnetic interference suppression in electronic circuits. The series is characterized by its ability to handle significant current loads while maintaining effective filtering performance across various industrial applications.

Replacement Considerations

DSS6NZ82A103Q92A is a documented alternative variant within the same series.
