DST4-16B10
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：PWR XFMR LAMINATED 6VA TH
- Series：Split Bobbin Plug-In
- Mfr：Pulse Electronics
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 8V, Series 16V
- Current - Output (Max)：Parallel 800mA, Series 400mA
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：6VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：41.40mm L x 33.27mm W
- Height - Seated (Max)：33.27mm
- Voltage - Isolation：2500Vrms
- Weight：0.44 lb (199.58 g)
Download product information
Overview

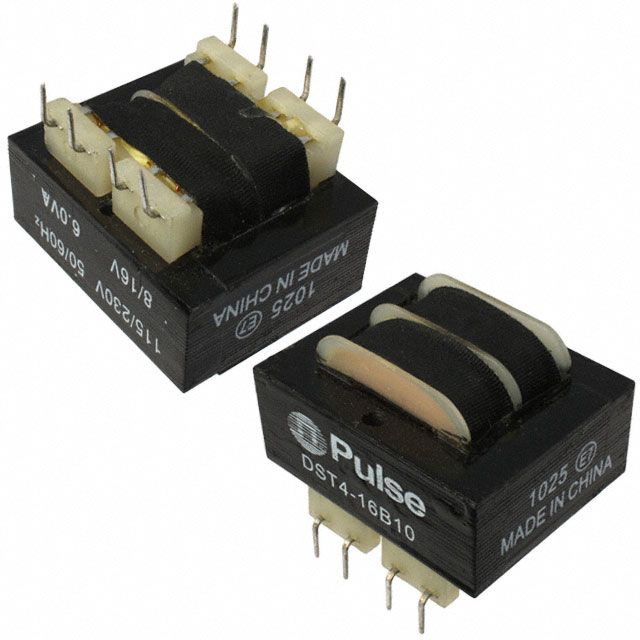

The DST4-16B10 is a low-frequency power transformer manufactured by Pulse Electronics. It features a laminated core with a split bobbin design and horizontal plug-in mounting style. The unit has an 8-pin DIP package and operates at a 6VA rating. Primary voltage options include 115V and 230V configured in parallel. Secondary outputs provide 8V series connections, supporting currents of 800mA and 400mA respectively.
Feature Summary
- Laminated core construction for efficient magnetic flux transfer
- Split bobbin design facilitating horizontal plug-in installation
- Low-frequency operation suitable for standard power applications
Applications
- General purpose AC to DC power supply circuits
- Industrial control panel power distribution
- Consumer electronics internal power conversion
Procurement Notes
Verify the specific primary winding configuration required for your target mains voltage before ordering. Confirm that the secondary current ratings align with the load requirements of the downstream circuitry. Ensure the physical dimensions of the 8-pin DIP package fit within the designated PCB footprint and clearance constraints of the final assembly.
Selection Notes
Select this component when a robust, low-frequency transformer with a split bobbin structure is needed. It is appropriate for designs requiring horizontal mounting to save vertical space. Consider the 6VA power limit and ensure it meets the energy demands of the application without exceeding thermal limits under maximum load conditions.
Part Context
This transformer belongs to the Split Bobbin Plug-In series from Pulse Electronics. These components are designed for through-hole mounting on printed circuit boards. The series emphasizes durability and ease of integration into standard manufacturing processes for power conversion modules.
Replacement Considerations
Direct substitutes must match the 6VA rating, 8-pin DIP configuration, and specific primary/secondary voltage ratios. Verify that any alternative part supports the same laminated core technology and horizontal plug-in form factor to maintain mechanical compatibility.
