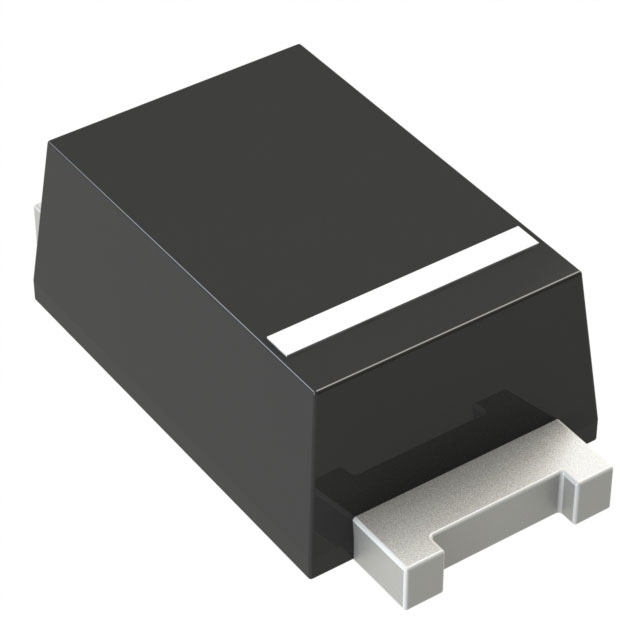

Tvs Diodes DTVS22SP4UR-7 product image

DTVS22SP4UR-7

$0.57
  • Description：TVS DIODE 22VWM 35.5VC SOD123F
  • Series：-
  • Mfr：Diodes Incorporated
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:73f69c9a25b6 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

DTVS22SP4UR-7 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is TVS DIODE 22VWM 35.5VC SOD123F. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for DTVS22SP4UR-7

  • Description：TVS DIODE 22VWM 35.5VC SOD123F
  • Series：-
  • Mfr：Diodes Incorporated
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • Type：Zener
  • Bidirectional Channels：-
  • Voltage - Reverse Standoff (Typ)：22V
  • Voltage - Breakdown (Min)：24.4V
  • Voltage - Clamping (Max) @ Ipp：35.5V
  • Current - Peak Pulse (10/1000µs)：11.3A (8/20µs)
  • Power - Peak Pulse：400W
  • Power Line Protection：No
  • Applications：-
  • Capacitance @ Frequency：-
  • Operating Temperature：-55°C ~ 150°C (TJ)
  • Mounting Type：Surface Mount
  • Package / Case：SOD-123F
  • Supplier Device Package：SOD-123F
  • Unidirectional Channels：1
  • Grade：Automotive
  • Qualification：-

Tvs Diodes datasheet and documents for DTVS22SP4UR-7

DTVS22SP4UR-7
