DV10M70000S0C1

Overview

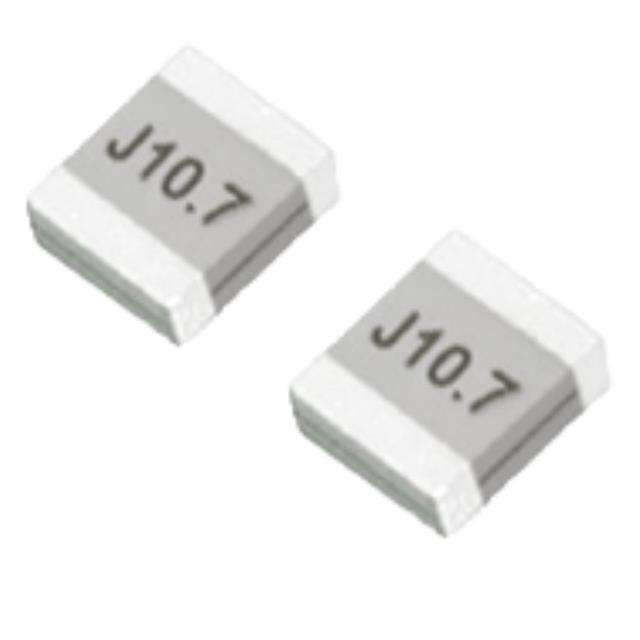

The DV10M70000S0C1 is a ceramic filter manufactured by TGS, designed for discriminator applications. It operates at a center frequency of 10.7MHz and utilizes a 2-SMD surface mount package. The component measures 3.70mm in length and 3.10mm in width.

Feature Summary

• Designed specifically for discriminator circuit applications
• Utilizes ceramic construction for signal filtering
• Supports surface mount technology for automated assembly

Applications

• FM radio receiver circuits
• Intermediate frequency filtering in communication devices
• Audio demodulation systems

Procurement Notes

Verify the manufacturer part number against official TGS documentation to ensure authenticity. Confirm that the 2-SMD package dimensions match the design requirements. Check RoHS compliance status if required by specific regional regulations or end-product standards before finalizing procurement decisions.

Selection Notes

Select this component when a 10.7MHz discriminator response is required in a compact surface mount form factor. Ensure the PCB layout accommodates the specified 3.70mm x 3.10mm footprint. Verify compatibility with the surrounding circuit impedance and bandwidth requirements for optimal performance.

Part Context

This component belongs to the DV series of ceramic filters from TGS. These components are specialized passive devices used primarily in analog signal processing chains where precise frequency selection and discrimination are necessary for recovering audio or data signals from carrier waves.

Replacement Considerations

Consult official TGS substitution guides for verified equivalents. Generic replacements may differ in bandwidth or insertion loss characteristics.
