Product Detailed Parameters
- Description：DIODE ZENER ARRAY 8.2V SSMINI5
- Series：-
- Mfr：Panasonic Electronic Components
- Package：Tape & Reel (TR)
- Configuration：2 Pair Common Anode
- Voltage - Zener (Nom) (Vz)：8.2 V
- Tolerance：-
- Power - Max：150 mW
- Impedance (Max) (Zzt)：30 Ohms
- Current - Reverse Leakage @ Vr：100 nA @ 5 V
- Operating Temperature：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- pa_package-case：
- Supplier Device Package：SSMini5-F4-B
- Voltage - Forward (Vf) (Max) @ If：1 V @ 10 mA
Download product information
Overview

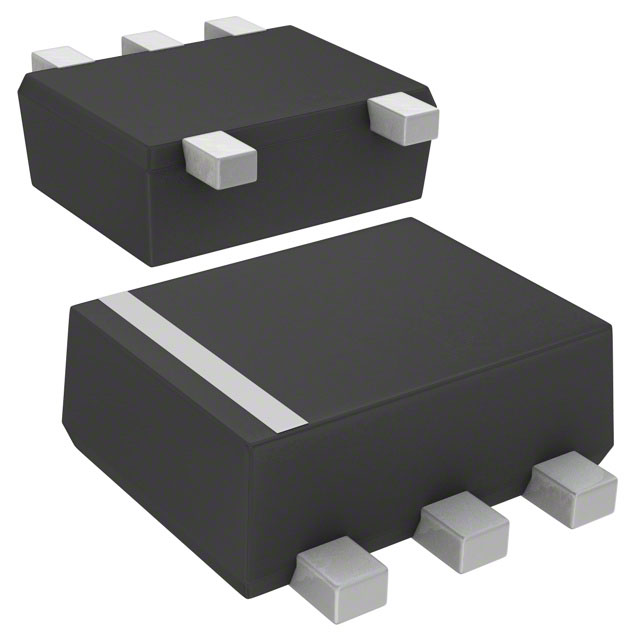

The DZ5S082D0R is a Zener diode array manufactured by Panasonic Electronic Components, designed for voltage regulation and protection applications. It features a nominal Zener voltage of 8.2V and a power dissipation rating of 150mW. The component is housed in an SSMINI5 package, which corresponds to the SOT-665 physical footprint. This configuration allows for efficient space utilization in compact electronic circuits while maintaining reliable performance standards for discrete semiconductor operations.
Feature Summary
- Dual-channel Zener array structure for integrated voltage regulation
- Compact surface-mount packaging optimized for automated assembly
- Designed for stable operation within defined thermal limits
Applications
- Voltage reference circuits requiring dual regulated rails
- Input protection stages in signal processing modules
- Over-voltage suppression in low-power consumer electronics
Procurement Notes
Verify the specific manufacturer part number against official Panasonic documentation to ensure authenticity. Confirm that the received components match the SSMINI5/SOT-665 package designation. Check datasheet specifications for electrical tolerances and thermal characteristics prior to integration into final designs.
Selection Notes
Select this component when a dual Zener configuration is required in a minimal footprint. Ensure the application voltage does not exceed the 8.2V nominal rating. Consider the 150mW power dissipation limit during thermal analysis. Verify compatibility with the target PCB layout for the specified surface-mount package type.
Part Context
This device belongs to Panasonic's discrete diode portfolio, specifically within the Zener array category. It serves as a specialized solution for multi-channel voltage control needs. The product line emphasizes reliability and compactness for modern electronic manufacturing requirements.
Replacement Considerations
Consult official Panasonic substitution guides for verified equivalents. Generic replacements may differ in electrical parameters or package dimensions. Validate any alternative part against the original specifications before implementation.
