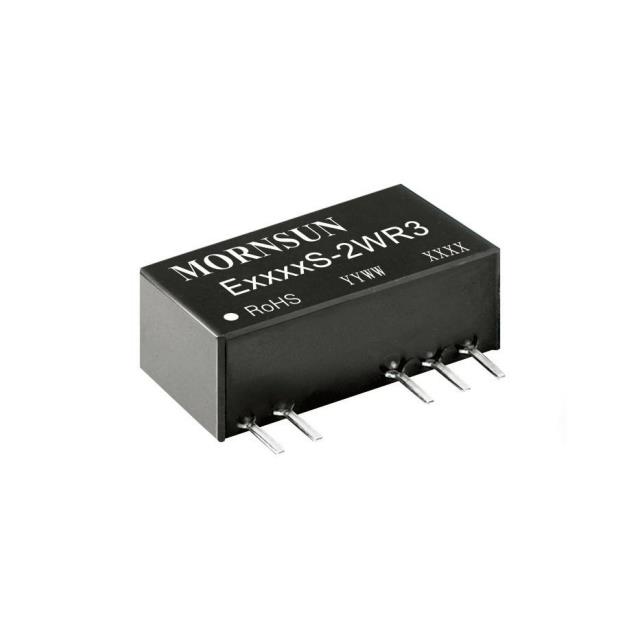

E0524S-2WR3

E0524S-2WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER +/-24V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for E0524S-2WR3

• Description：DC DC CONVERTER +/-24V 2W
• Series：E0524S-2WR3 (2W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：24V
• Voltage - Output 2：-24V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：42mA, 42mA
• Power (Watts)：2 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 5 Leads
• Size / Dimension：0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
