Product Detailed Parameters
- Description：PWR XFMR LAMINATED 100VA CHAS MT
- Series：SBE
- Mfr：SolaHD
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：-
- Voltage - Secondary (Full Load)：-
- Current - Output (Max)：-
- Primary Winding(s)：Dual, Multiple Taps
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：100VA
- Mounting Type：Chassis Mount
- Termination Style：Solder, Quick Connect
- Size / Dimension：-
- Height - Seated (Max)：-
- Voltage - Isolation：-
- Weight：-
Download product information
Overview

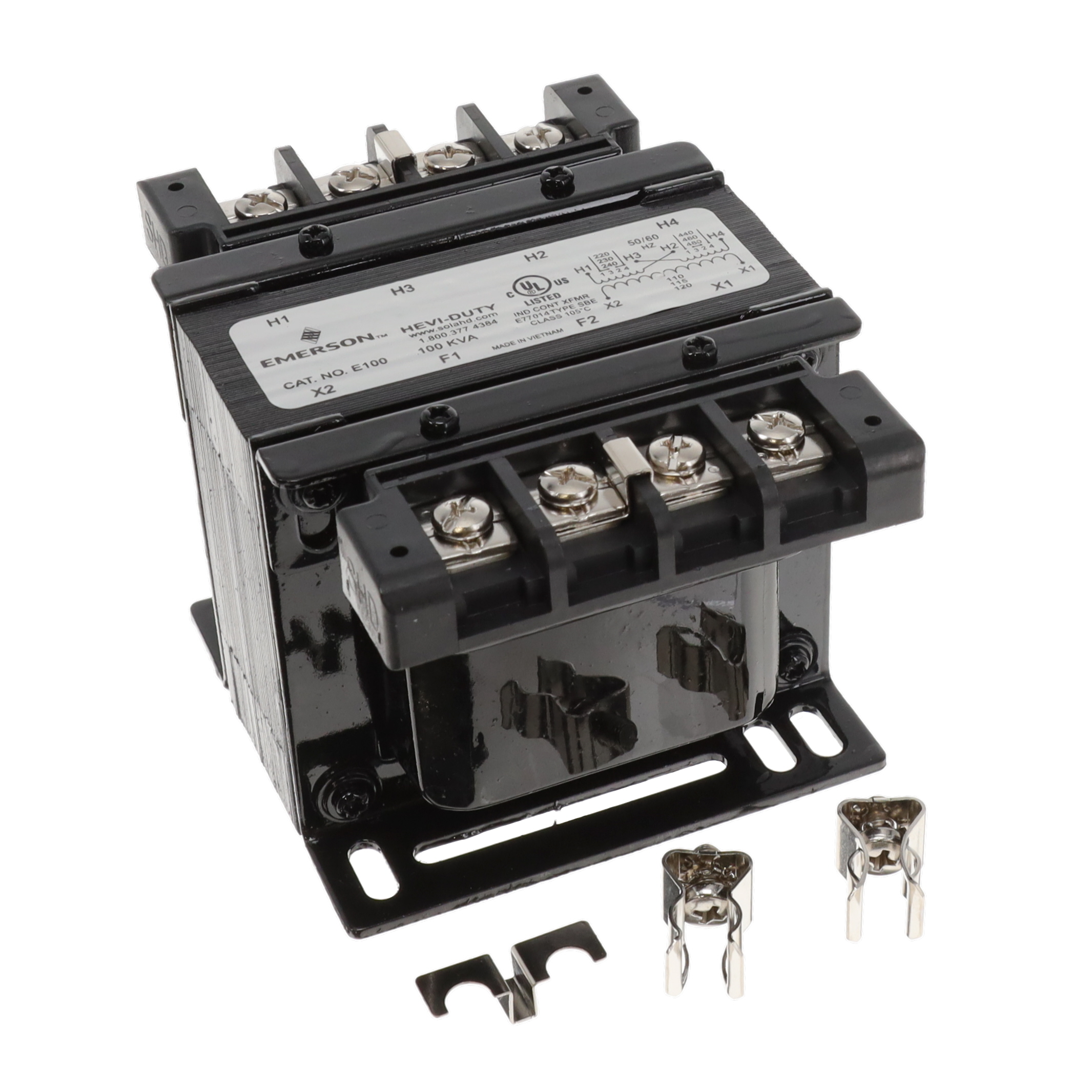

The SolaHD E100 is an encapsulated industrial control transformer with a 100 VA power rating. It features dual primary windings supporting 240 V and 480 V inputs, providing a single 24 V secondary output. Designed for 60 Hz operation, it utilizes screw terminals for connection. The unit measures 2.96 inches in length, 3.39 inches in width, and 4.61 inches in height, weighing 2.27 kg. It operates within a temperature range of 0°C to +105°C and employs bracket mounting.
Feature Summary
- Epoxy encapsulation seals windings against moisture and dirt
- IP20 touch-proof terminations ensure safety compliance
- Copper windings provide reliable electrical conductivity
Applications
- Industrial control panels
- Machine tool circuits
- Automation system auxiliary power
Procurement Notes
Verify the specific voltage configuration required for your application, as the model supports dual primary inputs. Confirm that the bracket mounting style aligns with your enclosure design. Check current availability status, as production cycles may vary. Ensure the operating environment temperature remains within the specified 0°C to +105°C range for optimal performance and longevity.
Selection Notes
Select this component when a compact, encapsulated transformer is needed for 60 Hz industrial environments. The dual primary winding allows flexibility for 240 V or 480 V source connections. The IP20 rating makes it suitable for indoor panel installation where basic touch protection is required. Consider the physical dimensions and weight for mechanical integration into existing control cabinets.
Part Context
This unit belongs to the SBE series of encapsulated industrial control transformers from SolaHD. The series is characterized by epoxy-encapsulated designs that protect internal components from environmental contaminants. It serves as a standard auxiliary power solution for converting higher line voltages to lower control circuit levels in industrial settings.
FAQ
What is the secondary voltage output?
The secondary voltage is 24 V.
Does the transformer support multiple primary voltages?
Yes, it has dual primary windings for 240 V and 480 V inputs.
