E100TF

Overview

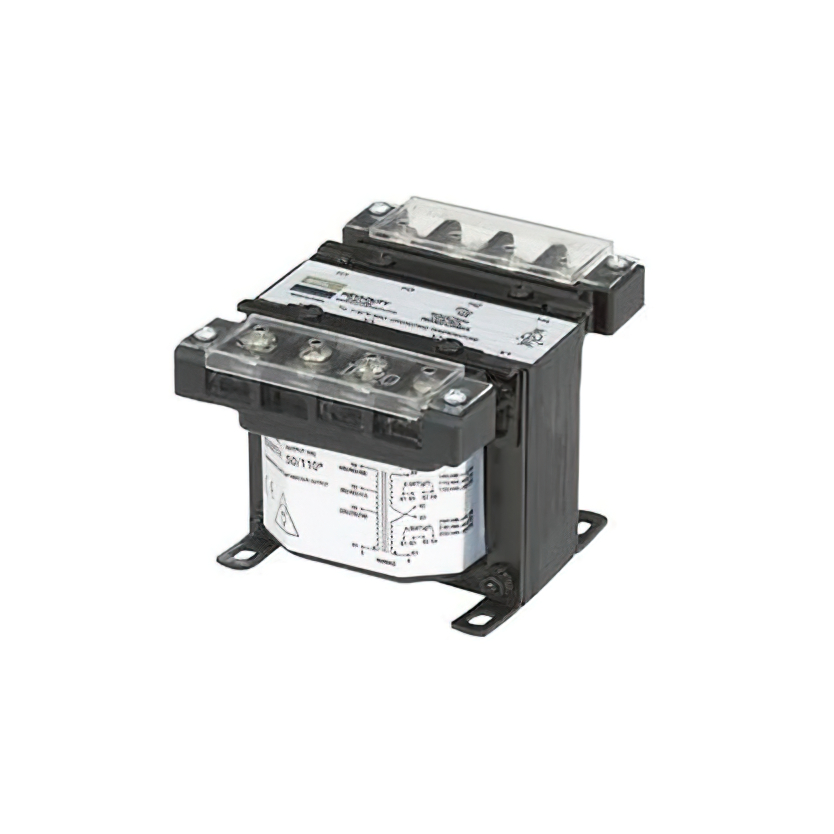

The SolaHD E100TF is a 100 VA laminated core power transformer designed for chassis mounting. It features an epoxy-encapsulated construction with copper windings, supporting multi-voltage primary inputs of 208V, 240V, 415V, 480V, and 600V AC. The secondary output provides 120V AC (with variants offering 115V or 110V). Rated for 50/60 Hz operation, it complies with UL 506, UL (Canada and US), CE, CSA C22.2, and JIC standards.

Feature Summary

• Epoxy-encapsulated design for environmental protection
• Multi-voltage primary input capability
• Laminated core construction for efficiency
• Chassis mount configuration

Applications

• Industrial control panels
• Machine tool power distribution
• International electrical systems requiring voltage conversion
• Automation equipment power supplies

Procurement Notes

Verify the specific secondary voltage rating required for your application, as the E100TF series includes variants with 120V, 115V, or 110V outputs. Confirm that the chassis mounting dimensions align with your enclosure space constraints. Ensure the operating frequency matches your system's 50Hz or 60Hz requirement. Cross-reference the part number suffix if specific certification markings are mandatory for your region.

Selection Notes

Select this model when a robust, encapsulated transformer is needed for industrial environments. The multi-voltage primary allows flexibility in global deployment without changing hardware. Consider the physical size of approximately 4.5 inches wide by 3.89 inches high to ensure fit within control cabinets. This unit is suitable for applications requiring isolation and standard voltage step-down from higher primary lines.

Part Context

The E100TF belongs to the SolaHD International Series of control transformers. These units are engineered for durability in harsh industrial settings. The series emphasizes compliance with major international safety standards, making them suitable for export-oriented machinery. The encapsulation process protects internal components from moisture and contaminants common in factory floors.

Replacement Considerations

Direct replacements must match the 100 VA rating and chassis mount form factor. Verify that substitute models support the same primary voltage range (up to 600V) and provide the correct secondary output. Ensure the replacement meets identical safety certifications such as UL and CE for seamless integration into existing certified equipment.
