Product Detailed Parameters

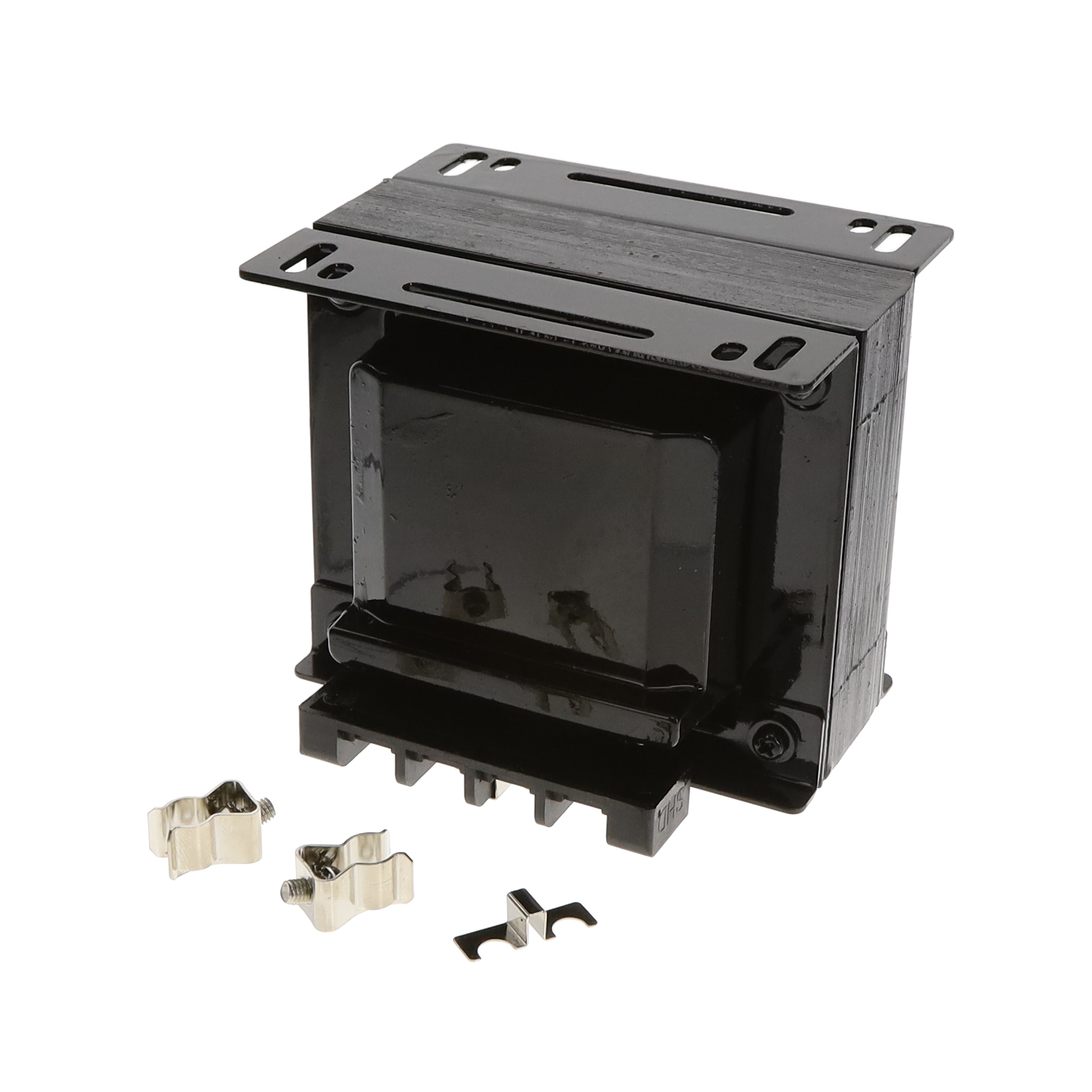

- Description：PWR XFMR LAMINATED 150VA CHAS MT
- Series：SBE
- Mfr：SolaHD
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：-
- Voltage - Secondary (Full Load)：-
- Current - Output (Max)：-
- Primary Winding(s)：Dual, Multiple Taps
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：150VA
- Mounting Type：Chassis Mount
- Termination Style：Solder, Quick Connect
- Size / Dimension：-
- Height - Seated (Max)：-
- Voltage - Isolation：-
- Weight：-
Download product information
Overview
The SolaHD E150 is a 150 VA encapsulated industrial control transformer designed for auxiliary power applications. It features an epoxy-encapsulated construction with copper windings to protect against environmental contaminants. The unit supports a primary voltage range of 240/480 VAC and provides a secondary output of 120 VAC. Operating at 50/60 Hz, the transformer meets UL and CSA safety standards. Its design incorporates interleaved windings to minimize I2R losses and enhance thermal efficiency within industrial control panels.
Feature Summary
- Epoxy encapsulation seals windings against moisture and dirt
- Interleaved copper windings reduce electrical losses
- IP20 touch-proof termination design for safety
Applications
- Industrial control panel auxiliary power
- Machine tool circuit isolation
- Enclosed equipment control systems
Procurement Notes
Verify the specific datasheet version for the exact primary voltage configuration, as listings indicate variations between 240V and 240/480V inputs. Confirm physical dimensions match the enclosure space requirements, as sources cite differing measurements. Ensure the required secondary voltage aligns with the load specifications before finalizing the order.
Selection Notes
Select this model for applications requiring robust environmental protection in industrial settings. The epoxy encapsulation offers superior durability compared to open-frame designs. Verify that the 150 VA rating adequately supports the connected control circuit loads without exceeding thermal limits under continuous operation conditions.
Part Context
This component belongs to the SBE series of encapsulated industrial control transformers manufactured by SolaHD. The series is characterized by its use of epoxy resin to seal internal components, providing enhanced resistance to harsh operating environments compared to standard unencapsulated units.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other SolaHD SBE series models if different voltage configurations or power ratings are required.
