E150E

Overview

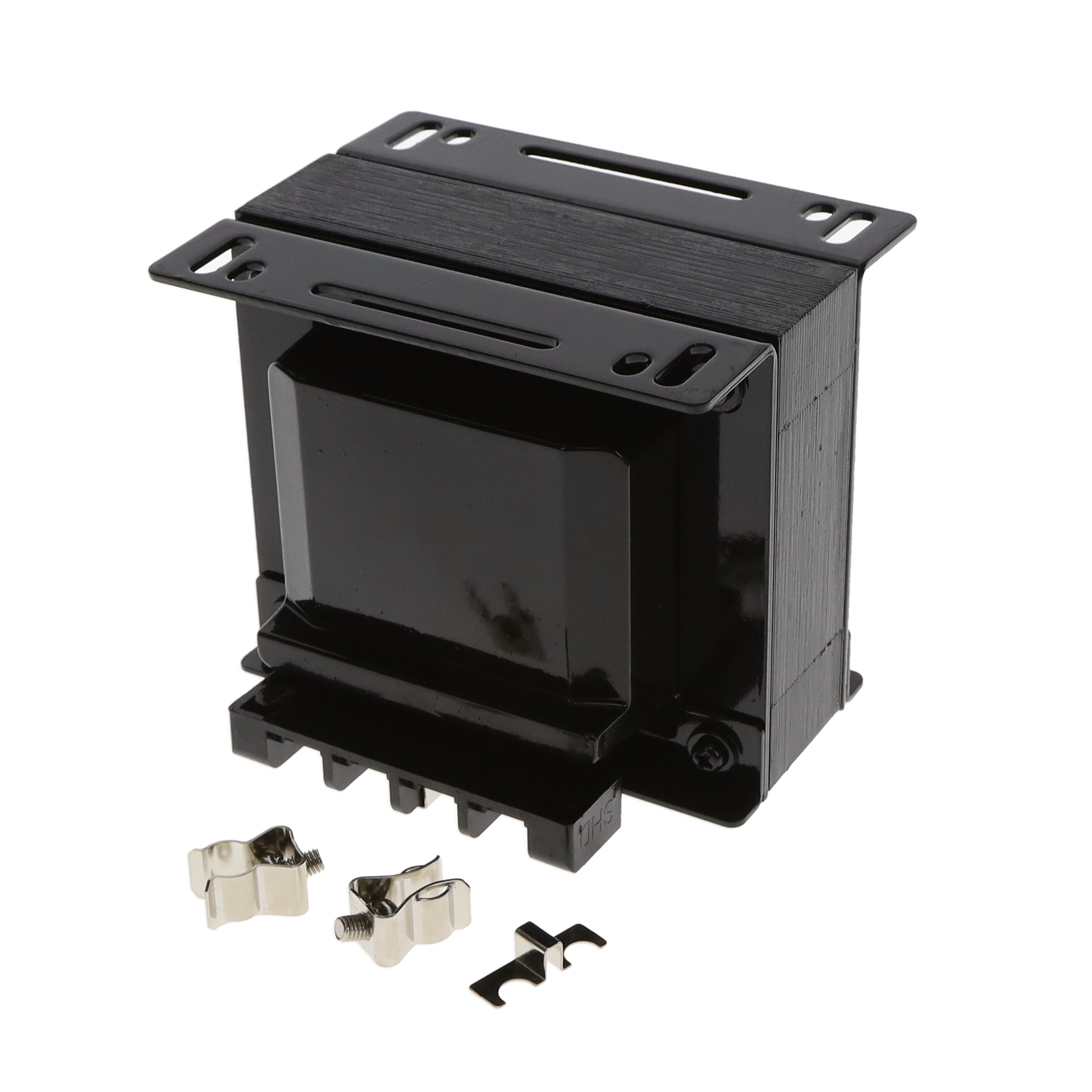

The SolaHD E150E is an encapsulated industrial control transformer with a 0.150 kVA rating. It features a laminated core and chassis mount design. The primary winding supports dual voltages of 120V and 240V at 60 Hz. The secondary output provides a fixed 24V supply. The unit utilizes copper windings and epoxy encapsulation to protect against moisture, dirt, and industrial contaminants. It includes IP20 touch-proof terminations and molded terminal barriers to prevent electrical failure from arcing or frayed leads.

Feature Summary

• Epoxy encapsulation seals windings against environmental hazards
• IP20 touch-proof terminations ensure operator safety
• Molded terminal barriers reduce arcing risks
• Copper windings provide durable electrical conductivity

Applications

• Industrial control panels requiring isolated power
• Auxiliary transformer circuits in machinery
• Enclosed equipment environments with contamination risks
• Safety-critical control systems needing touch-proof access

Procurement Notes

Verify the specific ordering suffix matches the required voltage configuration and terminal type. Confirm that the 0.150 kVA rating aligns with the load requirements of the target application. Ensure the chassis mount style fits the physical constraints of the installation panel. Check for compliance with regional safety standards applicable to industrial control transformers.

Selection Notes

Select this model when an encapsulated design is necessary to withstand harsh industrial conditions. Choose the E150E for applications requiring isolation between primary and secondary circuits. Consider the dual-voltage primary capability for flexibility in global deployment. Evaluate the 24V secondary output suitability for standard control logic components.

Part Context

This component belongs to the SBE series of encapsulated industrial control transformers manufactured by SolaHD. The series is characterized by rugged construction designed for demanding industrial environments. These transformers combine epoxy sealing with standardized primary coils to support multiple worldwide voltage combinations.

Replacement Considerations

Cross-reference part numbers within the SolaHD SBE series for direct replacements. Verify that substitute models maintain identical encapsulation ratings and terminal configurations. Ensure any alternative maintains the same 0.150 kVA capacity and 24V secondary output.
