E150JN
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：PWR XFMR LAMINATED 150VA CHAS MT
- Series：SBE
- Mfr：SolaHD
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：-
- Voltage - Secondary (Full Load)：-
- Current - Output (Max)：-
- Primary Winding(s)：Single, Multiple Taps
- Secondary Winding(s)：Single, Multiple Taps
- Center Tap：No
- Power - Max：150VA
- Mounting Type：Chassis Mount
- Termination Style：Solder, Quick Connect
- Size / Dimension：132.30mm L x 114.30mm W
- Height - Seated (Max)：98.80mm
- Voltage - Isolation：-
- Weight：-
Download product information
Overview

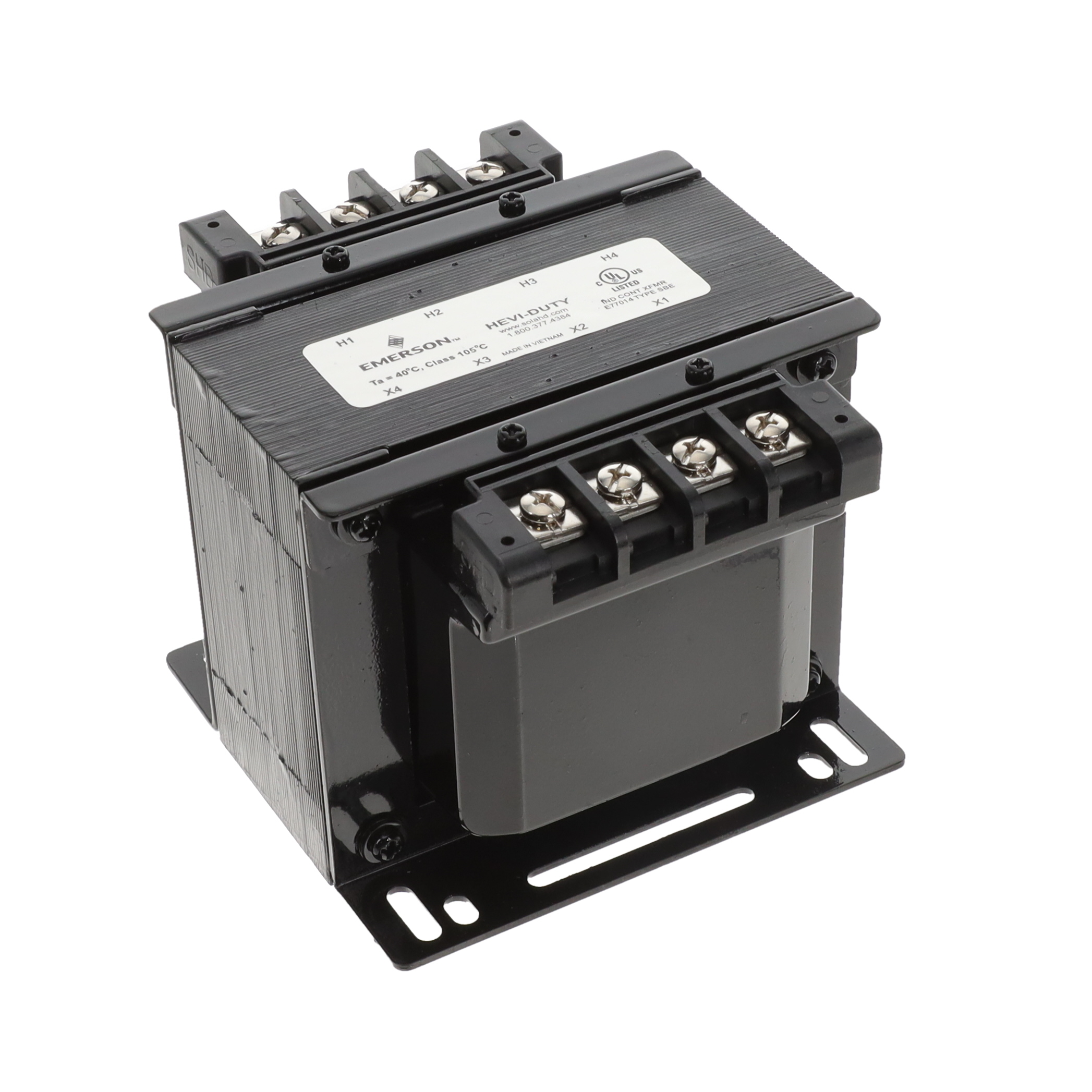

The SolaHD E150JN is a 150 VA encapsulated industrial control transformer with copper windings. It features multi-voltage primary inputs of 208/240/480/600 VAC and secondary outputs of 120/24 VAC or 115/23 VAC at 60 Hz. The unit measures 4.5 inches wide, 5.21 inches deep, and 3.89 inches high. It operates within a temperature range of 0°C to +105°C. Certifications include UL 506, CSA C22.2, and NEMA ST-1 compliance for North American markets.
Feature Summary
- Epoxy-encapsulated construction for environmental protection
- Multi-tap primary winding supports various input voltages
- Chassis mount design for secure installation
- Copper-wound core for efficient energy transfer
Applications
- Industrial control panel power supply
- Machine tool auxiliary power
- Factory automation systems
- HVAC control circuits
Procurement Notes
Verify that the specific order matches the required voltage configuration, as primary taps must be set correctly for the source voltage. Confirm physical dimensions fit the chassis space. Ensure the ambient operating temperature does not exceed the rated +105°C limit. Check for RoHS compliance requirements if applicable to the assembly. Validate that the 150 VA rating meets the load demand without overload.
Selection Notes
Choose this model when a compact, encapsulated transformer is needed for industrial environments. The multi-voltage primary allows flexibility in global deployment. Consider the chassis mount style for direct panel integration. Ensure the secondary voltage matches the control circuit requirements. Verify that the frequency rating aligns with the local power grid standards.
Part Context
The E150JN belongs to the SBE series of encapsulated transformers from SolaHD. This series is designed for harsh industrial conditions requiring robust protection. It serves as an auxiliary power source for control logic. The brand is associated with Emerson Industrial Automation solutions. The part number identifies a specific VA rating and voltage configuration within the product line.
Replacement Considerations
Direct substitutes may include other 150 VA encapsulated control transformers with identical mounting dimensions and electrical ratings. Verify that any replacement offers the same primary tap options and secondary output voltages. Ensure the new unit meets the same UL and CSA safety certifications. Check that the enclosure type provides equivalent environmental sealing.
