E150TF

Overview

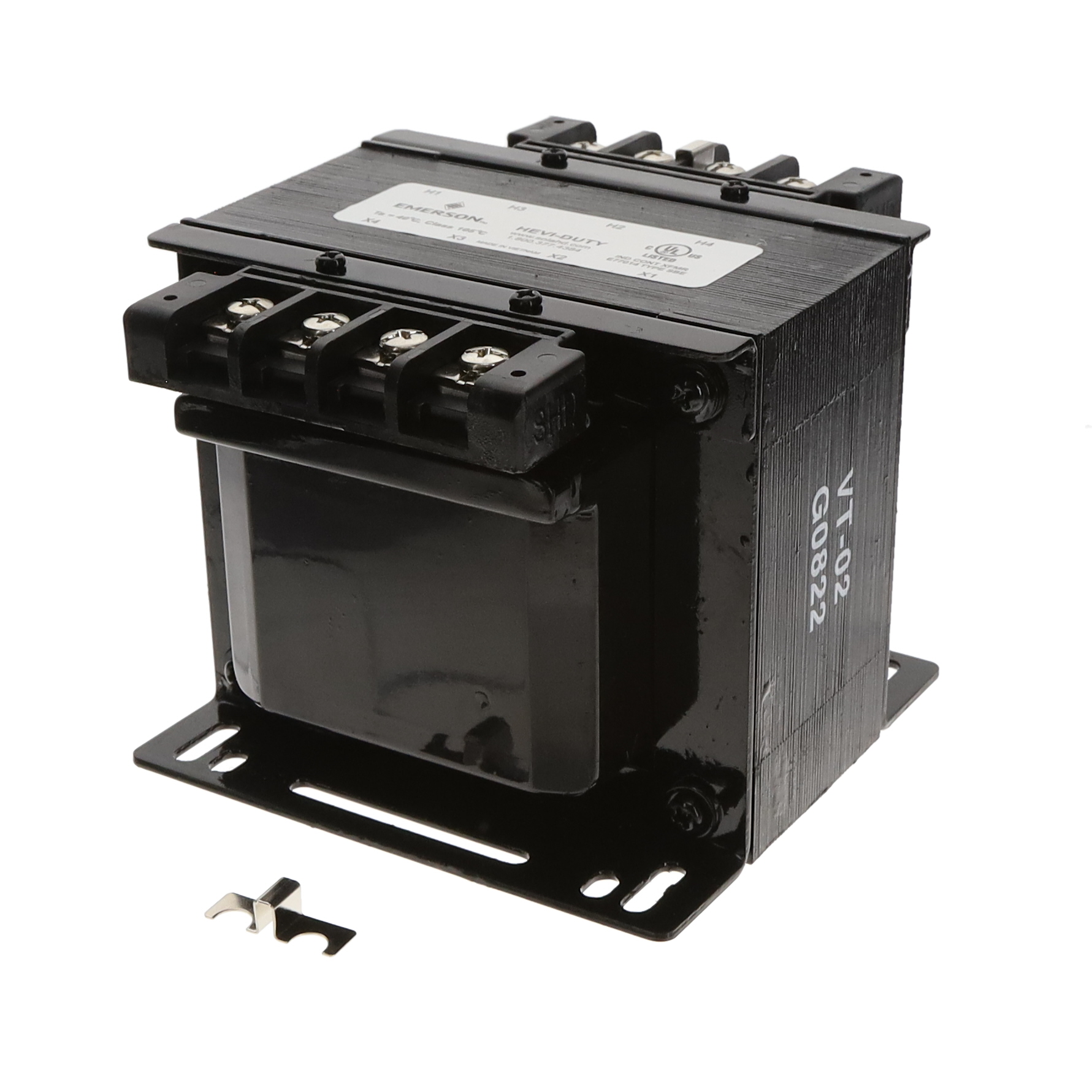

The SolaHD E150TF is a 150 VA encapsulated industrial control transformer designed for international applications. It features a laminated core and chassis mount construction. The primary winding supports multiple voltage inputs: 208, 240, 415, 480, and 600 VAC. The secondary output provides 120 VAC. It operates at 50/60 Hz with single-phase configuration. The unit utilizes copper windings and epoxy encapsulation to protect against moisture and contaminants. It includes IP20 touch-proof terminations.

Feature Summary

• Epoxy encapsulation seals windings against moisture, dirt, and industrial contaminants
• IP20 touch-proof terminations ensure operator safety
• Standardized primary coil design allows flexibility for multiple worldwide voltage combinations

Applications

• Industrial control panels requiring isolated power sources
• International machinery utilizing diverse primary voltage standards
• Harsh environments where protection from dust and moisture is required

Procurement Notes

Verify the specific primary voltage requirement against the available input options (208, 240, 415, 480, or 600 VAC) before ordering. Confirm that the mounting style matches the chassis specifications in the installation area. Ensure the load does not exceed the 150 VA rating under all operating conditions. Check for compliance with local electrical codes regarding IP20 rated equipment.

Selection Notes

Select this model when multi-voltage primary compatibility is necessary for global deployment. The encapsulated design is suitable for dirty or damp industrial settings. Consider the chassis mount form factor for panel integration. Verify that the 120 VAC secondary output aligns with the control circuit requirements. This unit is appropriate where robustness against environmental factors is prioritized over compact size.

Part Context

The E150TF belongs to the SolaHD International Series of encapsulated control transformers. These units are engineered for rugged industrial environments. The series combines epoxy sealing with IEC-compliant safety features. They are commonly used in automation systems where reliable isolation and durability are critical. The product line emphasizes flexibility through standardized primary designs.

Replacement Considerations

Direct substitutes must match the 150 VA rating, 120 VAC secondary, and multi-voltage primary capability. Encapsulated construction and IP20 ratings should be maintained for equivalent environmental protection. Chassis mount dimensions must fit existing panel layouts. Verify frequency compatibility for 50/60 Hz operation.
