Product Detailed Parameters
- Description：PWR XFMR LAMINATED 200VA CHAS MT
- Series：SBE
- Mfr：SolaHD
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：-
- Voltage - Secondary (Full Load)：-
- Current - Output (Max)：-
- Primary Winding(s)：Dual, Multiple Taps
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：200VA
- Mounting Type：Chassis Mount
- Termination Style：Solder, Quick Connect
- Size / Dimension：-
- Height - Seated (Max)：-
- Voltage - Isolation：-
- Weight：-
Download product information
Overview

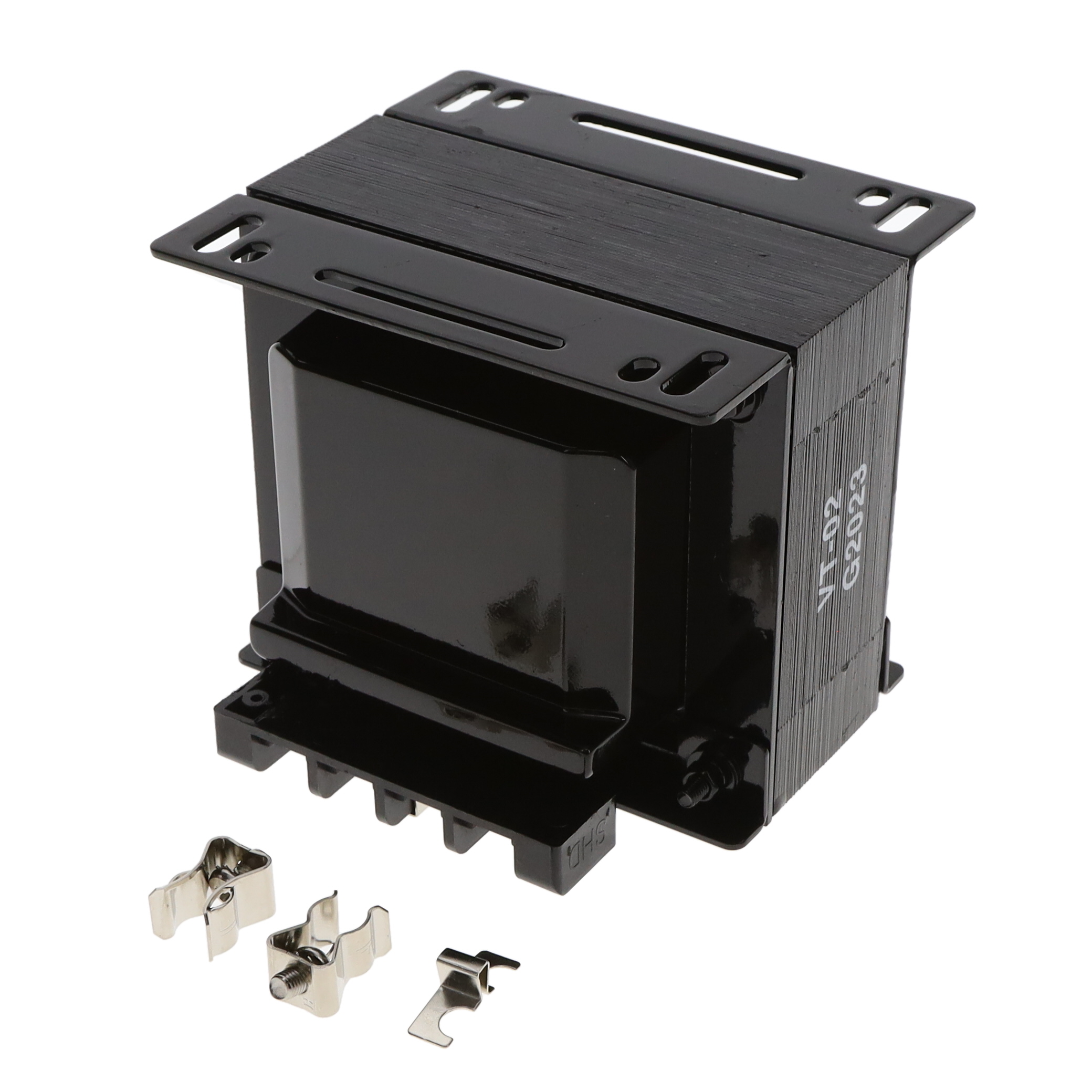

The SolaHD E200 is a 200 VA encapsulated industrial control transformer featuring dual primary windings rated for 240 V and 480 V, providing a single 120 V secondary output. Designed for 60 Hz operation, it utilizes copper windings within an epoxy-encapsulated housing to protect against moisture and dirt. The unit supports bracket mounting with dimensions of 3.89 inches in length, 4.5 inches in width, and 4.79 inches in height.
Feature Summary
- Epoxy encapsulation seals windings against environmental contaminants
- Dual primary winding configuration for flexible voltage input
- IP20 touch-proof termination design for safety
Applications
- Industrial control panel power distribution
- Auxiliary transformer circuits
- Machine tool electrical systems
Procurement Notes
Verify the specific datasheet version to confirm terminal configuration and insulation class ratings. Ensure the mounting bracket requirements match the installation environment specifications. Cross-reference the primary voltage selection with the actual supply network to prevent operational mismatch.
Selection Notes
Select this model when a compact, environmentally sealed transformer is required for standard industrial control voltages. The dual primary capability allows use in regions or systems utilizing either 240 V or 480 V supply lines without requiring different part numbers.
Part Context
This component belongs to the SBE series of encapsulated industrial control transformers manufactured by SolaHD. The series is characterized by its robust construction and suitability for harsh industrial environments where protection from dust and moisture is critical for long-term reliability.
Replacement Considerations
No public confirmed substitute part numbers are available.
