Product Detailed Parameters
- Description：PWR XFMR LAMINATED 200VA CHAS MT
- Series：SBE
- Mfr：SolaHD
- Package：Box
- Type：Laminated Core
- Voltage - Primary：120V, 240V
- Voltage - Secondary (Full Load)：24V
- Current - Output (Max)：-
- Primary Winding(s)：Dual, Multiple Taps
- Secondary Winding(s)：Single
- Center Tap：No
- Power - Max：200VA
- Mounting Type：Chassis Mount
- Termination Style：Solder, Quick Connect
- Size / Dimension：-
- Height - Seated (Max)：-
- Voltage - Isolation：-
- Weight：-
Download product information
Overview

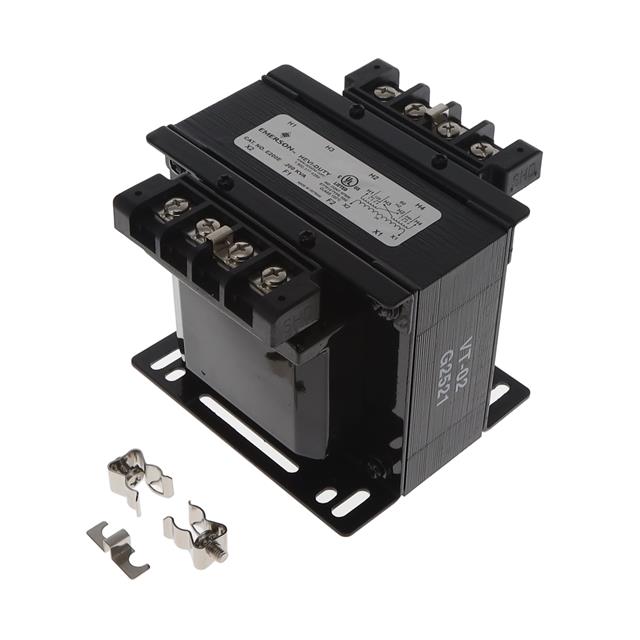

The SolaHD E200E is an encapsulated industrial control auxiliary transformer with a 0.200 kVA rating. It features a laminated core and chassis/panel mount design. The primary voltage supports 120V and 240V configurations, while the secondary output provides 24VAC. The unit operates at a frequency of 50/60 Hz and meets UL 5085 and UL (Canada and US) safety standards.
Feature Summary
- Encapsulated epoxy design seals windings against moisture and dirt
- IP20 touch-proof terminations for enhanced safety
- Copper windings in an encapsulated construction
Applications
- Industrial control panels
- Auxiliary power supply circuits
- Machine tool electrical systems
Procurement Notes
Verify the specific datasheet version to confirm exact physical dimensions and terminal configuration before integration. Ensure the mounting style matches the chassis or panel requirements. Confirm that the 120x240 primary input aligns with the available facility voltage infrastructure. Check for any recent regulatory updates regarding UL 5085 compliance for the target deployment region.
Selection Notes
Select this model when a compact, encapsulated solution is required for 24VAC control circuit isolation. The 200VA capacity suits moderate load applications. Verify that the 120/240V dual-voltage primary capability matches the site power distribution. Consider the IP20 protection level against environmental contaminants in the installation area.
Part Context
This component belongs to the SBE series of encapsulated industrial control transformers manufactured by SolaHD. The series utilizes epoxy encapsulation to protect internal copper windings from environmental factors such as moisture and dirt. These units are designed for robust performance in industrial environments requiring reliable auxiliary power transformation.
Replacement Considerations
Consult official SolaHD documentation for direct cross-reference part numbers. Generic replacements may differ in encapsulation quality, terminal accessibility, or UL listing status. Verify that any substitute maintains the same 200VA rating and 120x240-24V electrical specifications.
