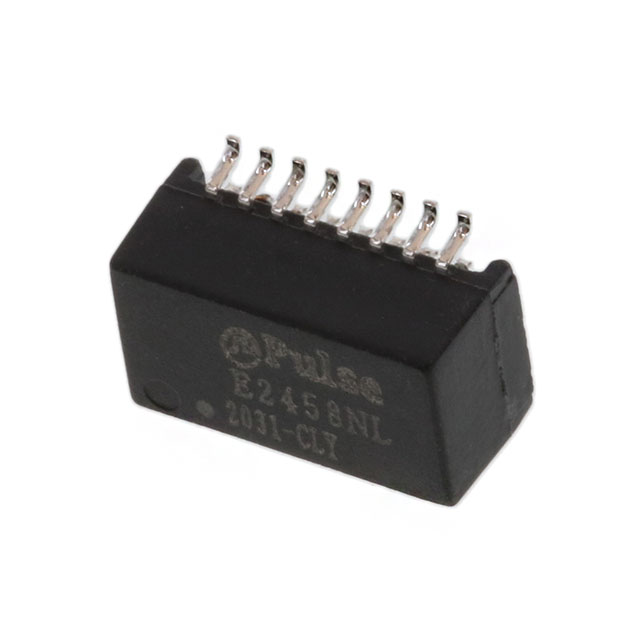

E2458NL
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：XFRMR ISOL 10BASE-T 1:1.41 SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Transformer Type：Isolation and Data Interface (Encapsulated)
- Inductance：160µH, 160µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1.41CT Transmitter, 1CT:1CT Receiver
- Mounting Type：Surface Mount
- Size / Dimension：0.500" L x 0.358" W (12.70mm x 9.09mm)
- Height - Seated (Max)：0.241" (6.12mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview
The E2458NL is a surface-mount audio and signal transformer designed for 10Base-T applications. It features an inductance of 160 uH, primary coil impedance of 700 Ohms, and secondary coil impedance of 200 Ohms. The component has a maximum DC resistance of 300 mOhms and supports an insulation voltage of 1.5 kV. Operating within a frequency range of 10 MHz to 100 MHz, it accommodates temperatures from 0 C to +70 C. The unshielded module measures 0.5 in x 0.38 in x 0.236 in.
Feature Summary
- Designed for 10Base-T network isolation
- Surface mount construction
- Unshielded magnetic design
Applications
- Adapter cards
- Hubs
- Motherboards
Procurement Notes
Verify the specific manufacturer part number against official Pulse Electronics documentation to ensure compatibility with target circuit designs. Confirm that the surface mount package dimensions and pinout align with the printed circuit board layout requirements. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the operating temperature range meets the system's thermal constraints.
Selection Notes
Select this component for 10Base-T Ethernet interfaces requiring galvanic isolation. The 160 uH inductance and specified impedance values support standard IEEE802.3 signaling. Consider the unshielded nature when planning PCB layout to manage electromagnetic interference. Verify that the surface mount footprint matches available board space and soldering capabilities.
Part Context
This component belongs to the Pulse Electronics audio and signal transformers category. It serves as an isolation transformer specifically engineered for data interface applications. The product line targets networking hardware where reliable signal transmission and electrical separation are critical for system integrity.
Replacement Considerations
Consult official distributor databases for cross-reference information. Verify functional equivalence regarding inductance, impedance, and physical dimensions before substitution.
