E2467NL

Overview

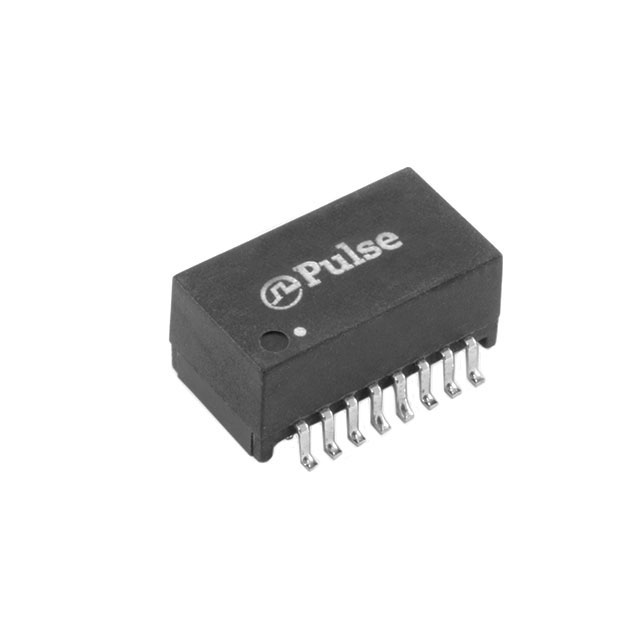

The E2467NL is a surface-mount LAN transformer module manufactured by Pulse Electronics, designed for 10Base-T applications. It provides electrical isolation between transmitter and receiver circuits with an insulation voltage of 1.5 kV. The component features a single channel configuration and operates within a temperature range of 0°C to +70°C. Key electrical parameters include a DC resistance of 0.3 Ohms and inductance values of 20µH and 100µH. The unit weighs 850 mg and utilizes SMD/SMT termination.

Feature Summary

• Provides galvanic isolation for data interface applications
• Supports 10Base-T network transmission standards
• Encapsulated design for signal integrity

Applications

• 10Base-T Ethernet interfaces
• Data communication circuit isolation
• Network port signal conditioning

Procurement Notes

Verify the specific package variant required, as the manufacturer offers both tube (E2467NL) and reel/cut tape (E2467NLT) options. Confirm that the non-PoE specification aligns with the target circuit design requirements before ordering.

Selection Notes

Select this component for standard 10Base-T implementations requiring unshielded isolation. Ensure the operating environment stays within the 0°C to +70°C limit. Consider the E2467NLT if automated pick-and-place equipment requires reel packaging instead of tubes.

Part Context

This part belongs to the Pulse Electronics LAN Transformers category, specifically engineered for Ethernet connectivity. It serves as a critical passive component for maintaining signal quality and safety isolation in legacy 10 Mbps networking hardware.

Replacement Considerations

The E2467NLT is a confirmed substitute offering identical electrical characteristics but packaged in reels or cut tape for different manufacturing processes.
