E35SE05030PDPG

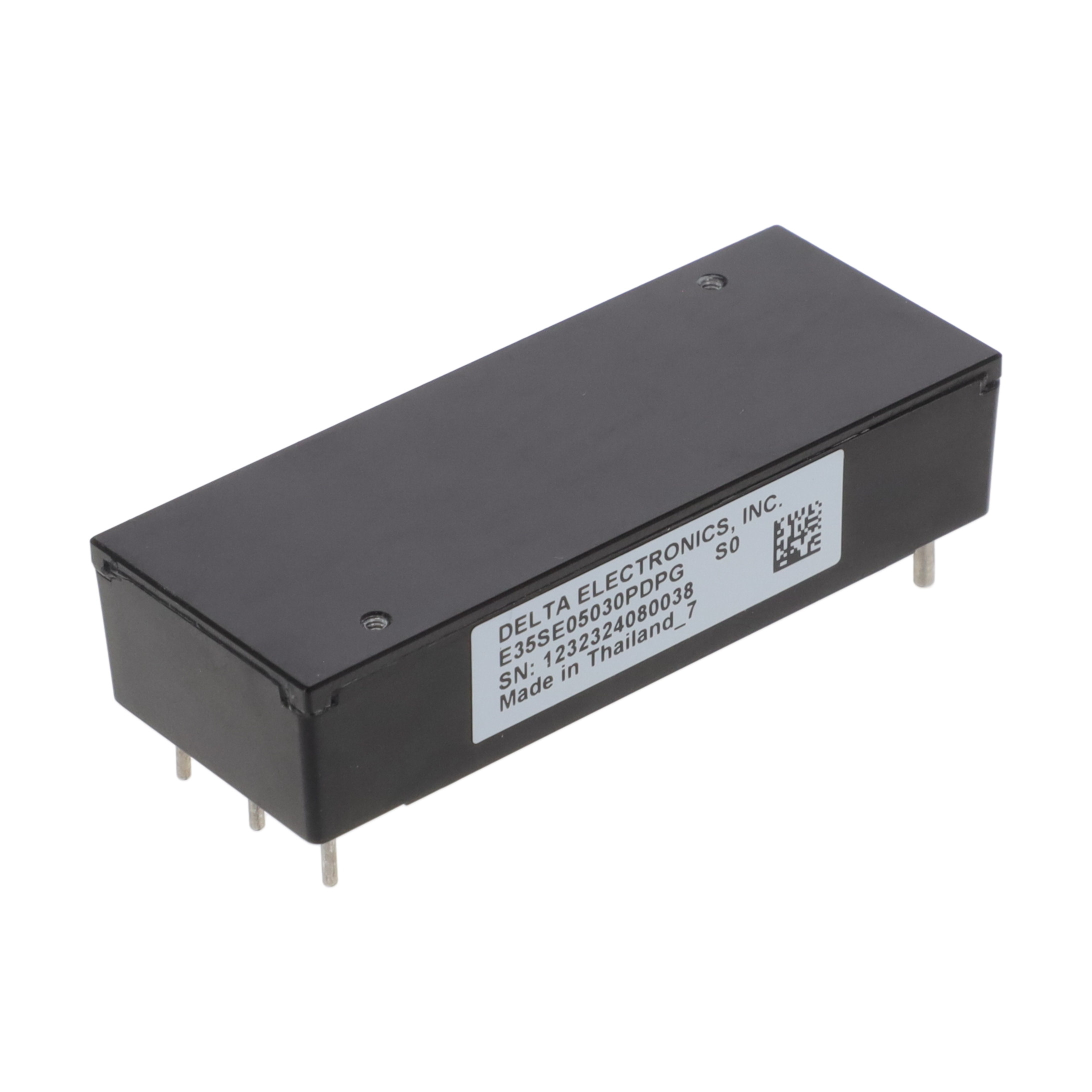

E35SE05030PDPG is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Delta Electronics. Its product description is 9-60VIN; 5VOUT, 150W, ENCAPSULAT. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for E35SE05030PDPG

• Description：9-60VIN; 5VOUT, 150W, ENCAPSULAT
• Series：E35SE (150W)
• Mfr：Delta Electronics
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：60V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：30A
• Power (Watts)：150 W
• Voltage - Isolation：4.242 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：92.20%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active High
• Approval Agency：CSA, EN, IEC, UL
• Standard Number：50155; 60950-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for E35SE05030PDPG
