Product Detailed Parameters
- Description：PWR XFMR LAMINATED 500VA CHAS MT
- Series：SBE
- Mfr：SolaHD
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：-
- Voltage - Secondary (Full Load)：-
- Current - Output (Max)：-
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single, Multiple Taps
- Center Tap：No
- Power - Max：500VA
- Mounting Type：Chassis Mount
- Termination Style：Solder, Quick Connect
- Size / Dimension：176.00mm L x 162.10mm W
- Height - Seated (Max)：141.20mm
- Voltage - Isolation：-
- Weight：-
Download product information
Overview

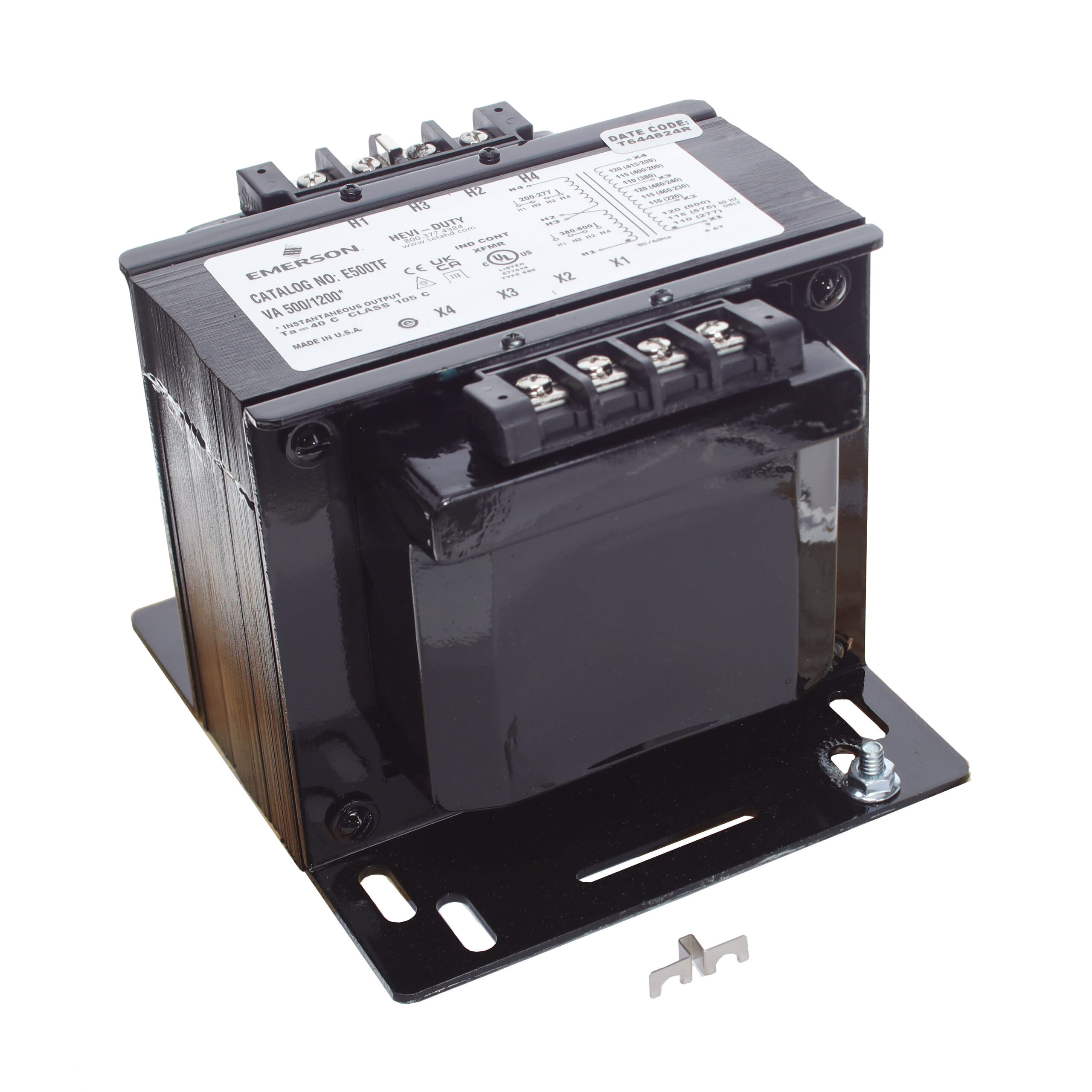

The SolaHD E500TF is a 500 VA industrial control transformer featuring epoxy encapsulation and copper windings. It supports multiple primary voltages including 208, 240, 415, 480, and 600 VAC, stepping down to a single 120 VAC secondary output. The unit operates at 50/60 Hz with dual primary winding configuration. Dimensions are 5.56 inches in length, 6.38 inches in width, and 6.93 inches in height, weighing 8.64 kg. It utilizes bracket mounting and includes IP20 touch-proof terminations for safety.
Feature Summary
- Epoxy encapsulation protects internal windings against moisture, dirt, and industrial contaminants.
- Deep molded terminal barriers reduce electrical failure risks from arcing or frayed leads.
- Standardized primary coil design allows flexibility for multiple worldwide voltage combinations.
Applications
- Industrial control panels requiring isolated power sources
- Machinery protection circuits in harsh environments
- Auxiliary power distribution for control logic
Procurement Notes
Verify the specific primary voltage configuration required for your application, as the E500TF supports multiple input ratings (208-600V). Confirm that the bracket mount style aligns with your enclosure design. Ensure compliance with UL 5085 and CE standards if operating in regulated markets. Check datasheet for exact terminal type specifications before integration.
Selection Notes
Select this model when a rugged, encapsulated transformer is needed for industrial environments. The 500 VA rating suits moderate control loads. Consider the multi-voltage primary capability if system inputs vary. The IP20 termination rating requires appropriate enclosure protection against direct contact.
Part Context
The E500TF belongs to the SolaHD International Series of SBE encapsulated transformers. This series is designed for global compatibility with standardized coils. It serves as an auxiliary power source within larger industrial systems, providing isolation and voltage transformation for sensitive control components.
Replacement Considerations
Direct substitutes must match the 500 VA rating, 120 VAC secondary, and encapsulated construction. Verify physical dimensions and mounting style compatibility. Ensure equivalent voltage input ranges and frequency ratings (50/60 Hz) are supported by any alternative component.
