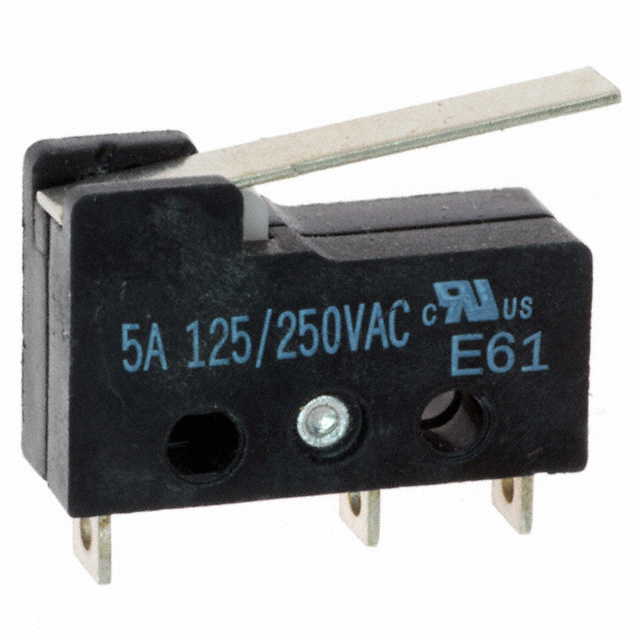

E61-10H

E61-10H is listed in the Limit Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH SNAP ACTION SPDT 5A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for E61-10H

• Description：SWITCH SNAP ACTION SPDT 5A 125V
• Series：E
• Mfr：ZF Electronics
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC/DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Solder Lug
• Ingress Protection：-
• Features：-
• Operating Force：27gf
• Release Force：-
• Operating Position：0.350" (8.9mm)
• Pretravel：0.144" (3.66mm)
• Differential Travel：0.020" (0.5mm)
• Overtravel：0.040" (1.0mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for E61-10H
