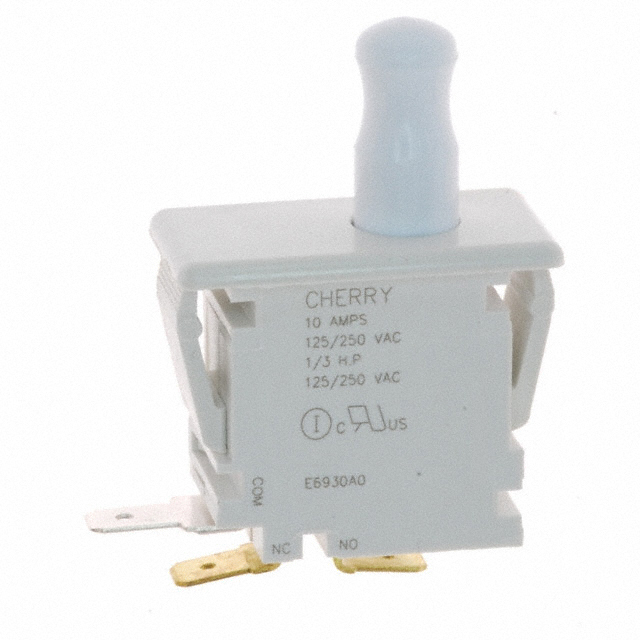

E69-30A

E69-30A is listed in the Limit Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH SNAP ACTION SPDT 10A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for E69-30A

• Description：SWITCH SNAP ACTION SPDT 10A 125V
• Series：E
• Mfr：ZF Electronics
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Push-Pull Plunger
• Mounting Type：Panel Mount, Snap-In
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：Pull On Lock
• Operating Force：425gf
• Release Force：-
• Operating Position：0.610" (15.5mm)
• Pretravel：0.125" (3.2mm)
• Differential Travel：0.045" (1.1mm)
• Overtravel：0.100" (2.54mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for E69-30A
