E8WSDC12-32.768K TR

Crystals Overview

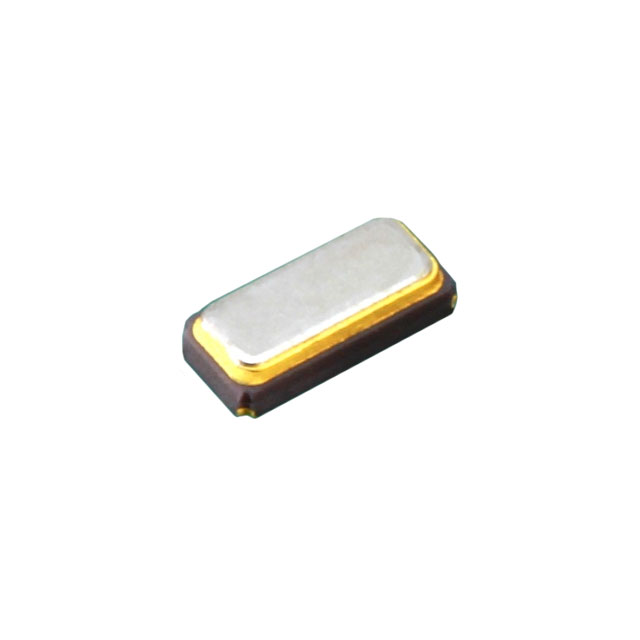

The E8WSDC12-32.768K TR is a surface-mount watch crystal from the Ecliptek E8WS series, designed for precision timing applications. It operates at a nominal frequency of 32.768 kHz with a standard load capacitance of 12.5 pF. The component features a miniature two-pad SMD package and offers a frequency tolerance of ±20 ppm. It is RoHS compliant and lead-free, suitable for integration into compact electronic designs requiring reliable clock sources.

Crystals Feature Summary

• Miniature two-pad surface mount package design
• Standard 32.768 kHz watch crystal operation
• RoHS compliant and lead-free construction

Crystals Applications

• Real-time clock circuits in consumer electronics
• Low-power embedded systems
• Compact wearable devices

Crystals Procurement Notes

Verify that the specific ordering suffix matches the required load capacitance and tolerance specifications for the target application. Confirm compliance with environmental directives such as RoHS and REACH requirements before finalizing procurement orders to ensure regulatory adherence.

Crystals Selection Notes

Select this component when a small footprint and standard 12.5 pF load capacitance are required. Ensure the host circuit supports the specified ±20 ppm frequency tolerance. Consider the two-pad SMD format for automated assembly processes in space-constrained PCB layouts.

Crystals Part Context

This part belongs to the E8WS series of surface-mount crystals manufactured by Ecliptek Corporation. The series focuses on providing reliable timing solutions in compact packages for modern electronic devices. The model designation indicates specific electrical parameters including load capacitance and frequency stability.

Crystals Replacement Considerations

Direct substitutes within the same series include E8WSDC12-32.768K without the tape reel suffix. Verify pin compatibility and electrical specifications when considering alternative manufacturers or series.
