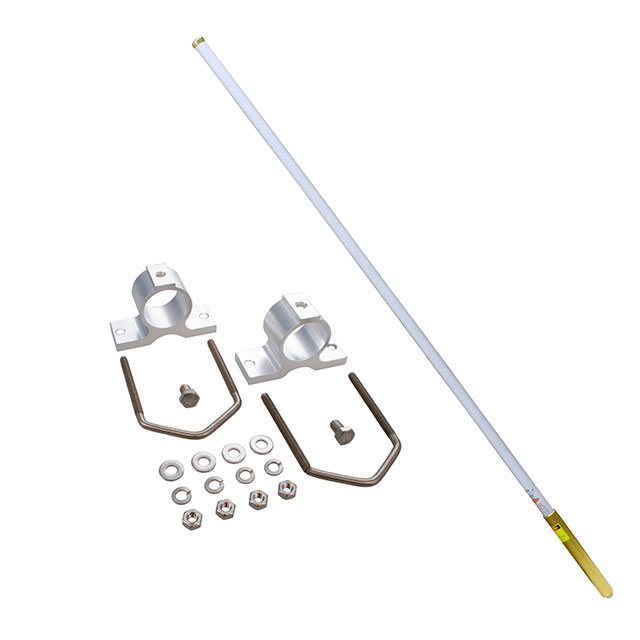

EAN0906WB is listed in the Antennas RF range at ChipApex. The manufacturer field lists FreeWave Technologies. Its product description is 902-928 MHZ 8.15 DBI 65" OMNIDIR. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for EAN0906WB
- Description：902-928 MHZ 8.15 DBI 65" OMNIDIR
- Series：-
- Mfr：FreeWave Technologies
- Package：Box
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：915MHz
- Frequency Range：902MHz ~ 928MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：6dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：-
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for EAN0906WB
Antennas RF Overview
The EAN0906WB is a UHF RF antenna manufactured by FreeWave Technologies, designed for operation within the 902MHz to 928MHz frequency range. It features a center frequency of 915MHz and provides a gain of 6dBi. The component utilizes an N-type female connector for interface and employs a bracket mount installation type. Classified as a whip-style straight antenna, it supports single-band functionality within the UHF spectrum.
Antennas RF Feature Summary
- Whip-style straight design for omnidirectional coverage
- N-type female connector interface
- Bracket mount installation configuration
Antennas RF Applications
- UHF wireless sensor networks
- Industrial telemetry systems
- Machine-to-machine communication links
Antennas RF Procurement Notes
Verify RoHS compliance status prior to integration, as documentation indicates non-compliance. Confirm ECCN classification EAR99 for export requirements. Ensure bracket mounting hardware compatibility with the specific installation environment. Validate connector mating with existing system interfaces before procurement finalization.
Antennas RF Selection Notes
Select this model when a fixed-gain omnidirectional solution is required for the 902-928MHz band. The N-type connector necessitates compatible cabling or adapter planning. Bracket mounting suitability depends on available structural support in the deployment area compared to flexible whip alternatives.
Antennas RF Part Context
This component belongs to the FreeWave Technologies RF antenna portfolio, specifically engineered for reliable short-range wireless data transmission. It complements FreeWave's broader ecosystem of secure M2M networking solutions, providing necessary radiating elements for their proprietary radio modules operating in the ISM bands.
Antennas RF Replacement Considerations
The EAN0905WB serves as a related alternative within the same product family, offering similar frequency coverage but differing in feed configuration and gain characteristics. Substitution requires verification of mechanical mounting constraints and impedance matching to ensure system performance continuity.
