EAP-03-102

Power Line Filter Modules Overview

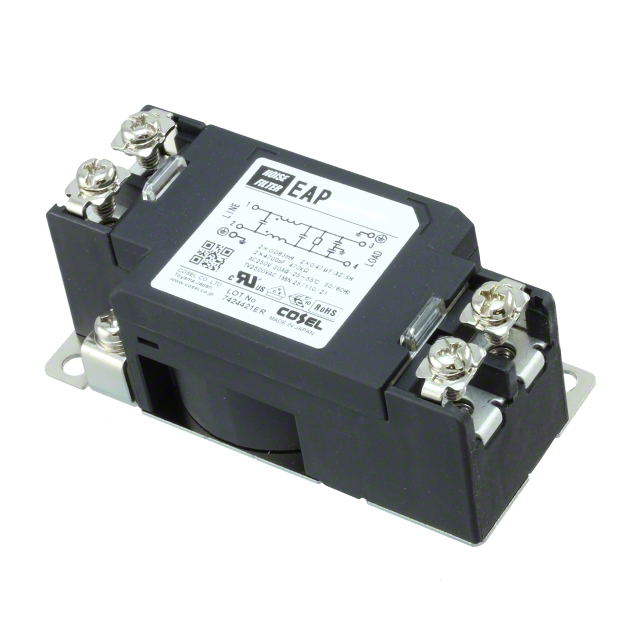

The Cosel EAP-03-102 is a single-phase power line filter designed for chassis mounting. It supports voltage ratings of 250 VAC and 250 VDC with a current rating of 3 A. The unit features screw termination and includes a capacitance of 1 nF. Leakage current is specified at 75.5 uA. It operates within a frequency range of 150 kHz to 1 MHz. Compliance certifications include UL, CSA, DIN, and ENEC.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase AC/DC circuits
• Designed for secure chassis mounting applications
• Utilizes screw termination for reliable electrical connections

Power Line Filter Modules Applications

• Industrial control systems requiring EMI filtering
• Medical equipment power supplies
• Test and measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision prior to ordering, as manufacturer specifications may be updated. Confirm that the chassis mounting style and screw termination method align with your enclosure design requirements. Ensure the 3 A current rating and 250 VAC/VDC voltage limits are sufficient for your target application's operational parameters.

Power Line Filter Modules Selection Notes

Select this component when a low-current (3 A) solution is required for chassis-mounted installations. Compare leakage current specifications against safety standards if used in sensitive environments. Verify that the 1 nF capacitance value meets the noise attenuation requirements for your specific frequency spectrum.

Power Line Filter Modules Part Context

This model belongs to the EA series of power line filters manufactured by Cosel USA, Inc. The series offers various current ratings and capacitance values to suit different power conditioning needs. These filters are engineered to reduce conducted emissions and improve immunity in electronic systems.

Power Line Filter Modules Replacement Considerations

Consult official Cosel documentation for verified substitute part numbers. Cross-referencing requires matching current, voltage, and physical mounting dimensions.
